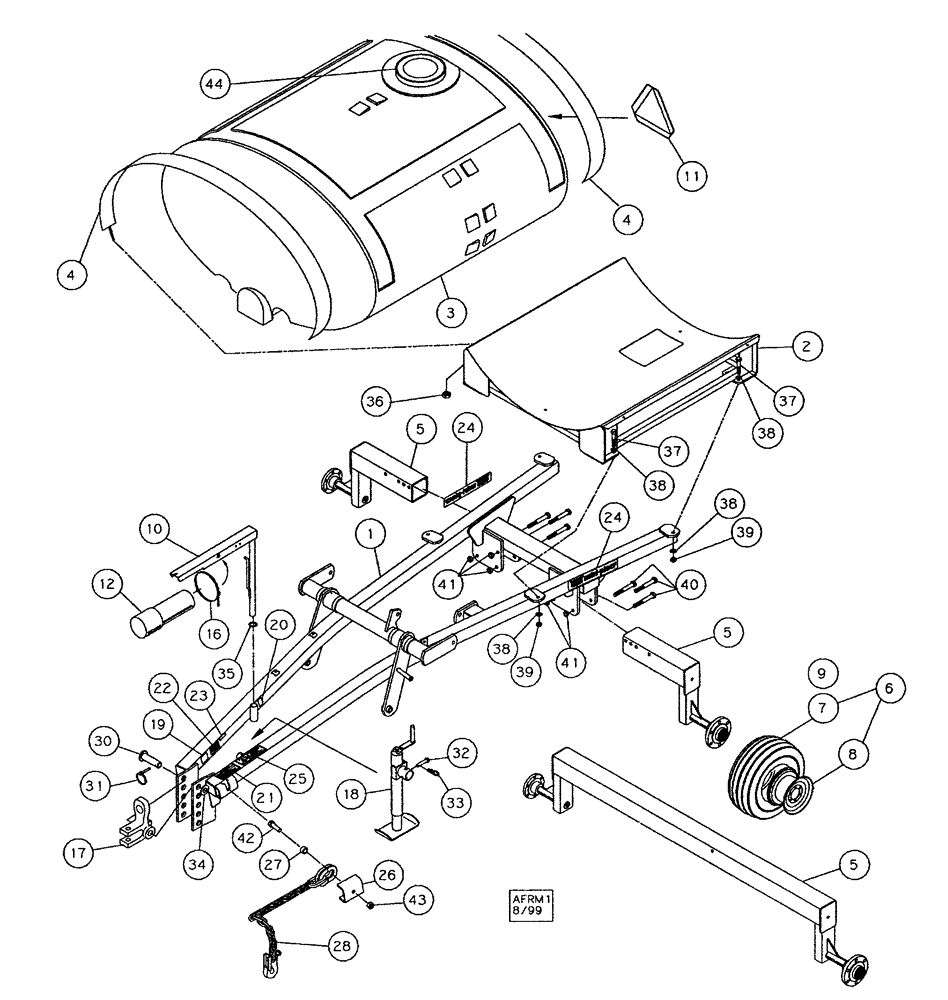

Запчасти Case IH 2800 (39.100.01) - MAIN FRAME 2007 AND PRIOR UNITS (09) - CHASSIS/ATTACHMENTS

1

87336211

FRAME ASSY

1шт.

2

87338177

MOUNTING PARTS

Tank, 500 Gallon

1шт.

2

87338188

MOUNTING PARTS

Tank, 850 Gallon

1шт.

3

87461175

TANK

Ellipitical, 500 Gallon

1шт.

3

87461176

TANK

Ellipitical, 850 Gallon

1шт.

4

05302335

STRAP

Tank, 500 Gallon

2шт.

4

05302365

STRAP

Tank, 850 Gallon

3шт.

5

05302200

STUB AXLE/STEERING S

Spindle, Adjustable, 783, 6 Bolt

2шт.

5

87338161

ARM ASSY.

Spindle, Adjustable, 50-8, 8 Bolt

2шт.

5

87338165

AXLE

Fixed, 120", 50-8, 8 Bolt

1шт.

6

10010160

WHEEL ASSY.

12.5L x 15SL, Tire And Wheel

2шт.

6

87461163

WHEEL ASSY.

14L x 16.1, Tire And Wheel

2шт.

7

NSS

NOT SOLD SEPARAT

12.5L x 15, 10 Ply, T-1

2шт.

7

NSS

NOT SOLD SEPARAT

14L x 16.1, 12 Ply, T-1

2шт.

8

10110154

WHEEL

15 x 10 LB, For 783, 6 Bolt Hub

2шт.

8

87461170

WHEEL ASSY.

16.1 x W11C, For 50-8, 8 Bolt Hub

2шт.

9

NSS

NOT SOLD SEPARAT

14L x 16.1, T-1 Tire, For 50-8, 8 Bolt Hub

2шт.

10

05302150

STAND

Hose

1шт.

11

311858A1

DECAL

SMV

1шт.

12

30026030

TUBE

Manual

1шт.

16

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

17

20092310

CLEVIS

Hitch Combination

1шт.

18

87416370

JACK,40.1 mm L

5K/7K, Square Tube

1шт.

19

NSS

NOT SOLD SEPARAT

Serial Number

1шт.

21

18534228

DECAL

Warning

1шт.

22

18534107

DECAL

Patents

1шт.

23

18534174

DECAL

Other Patents

1шт.

24

18534272

DECAL

Nutri-Placr

2шт.

25

18534317

WARNING SIGN

1шт.

26

04681210

BRACKET

1шт.

27

04681211

BUSHING

1шт.

28

87393082

CHAIN

20,000 Lbf, Safety

1шт.

30

14820525

HITCH PIN,41.28mm OD x 204.72mm L

1-5/8"

1шт.

31

D33805

PIN

7/16" x 2", Klik

1шт.

32

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", Clevis

1шт.

33

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.

34

17426001

WASHER

1-5/8" x 1/4"

1шт.

35

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", 10 Gauge, Machine

1шт.

36

425-108

NUT,1/2" - 13, Gr 5

Hex

4шт.

37

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

38

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

8шт.

39

425-1010

NUT,5/8"-11, G5

4шт.

40

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

6шт.

41

425-1014

NUT,7/8"-9, G5

6шт.

42

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

43

86992219

LOCK NUT

1"

1шт.

44

30000012

LID

10, Screw On

1шт.
