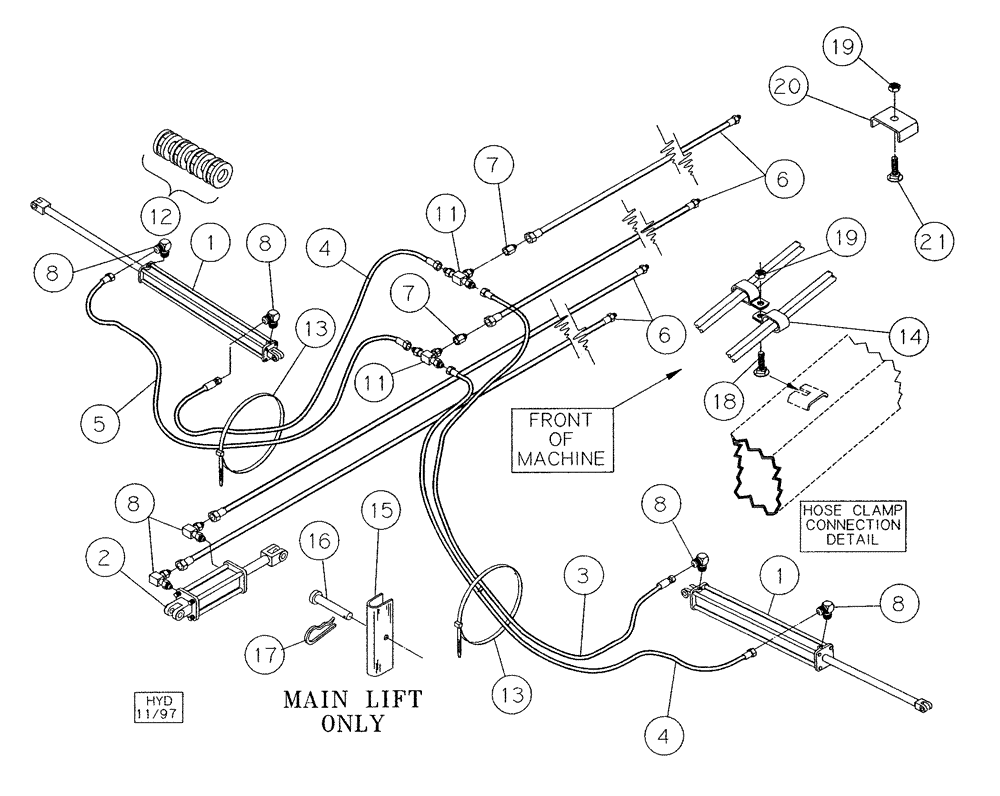

Запчасти Case IH 2800 (35.100.01) - HYDRAULIC HOSE ROUTING (08) - HYDRAULICS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16"

2шт.

1

25330160R

REMAN-HYD CYLINDER

2800, DMI NUTRI-PLACR®, 3" x 16"

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

2

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8"

1шт.

3

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

1шт.

4

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

2шт.

5

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

1шт.

6

25610718

HYDRAULIC HOSE

3/8" x 178"

4шт.

7

25405015

CONTROL VALVE

Brown

2шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

11

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

12

25800010

CYLINDER

Stroke Control

1шт.

13

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP

4шт.

14

22510700

HOSE CLAMP,15.86mm

A- Frame

4шт.

15

04632700

STAY

Transport

1шт.

16

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", E.L. Clevis

1шт.

17

14720411

COTTER PIN

PIN, COTTER 1/8" x 3", Hair

1шт.

18

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

19

86992213

NUT

3/8"

4шт.

20

06200125

HOSE CLAMP

Swivel Stand

1шт.

21

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.
