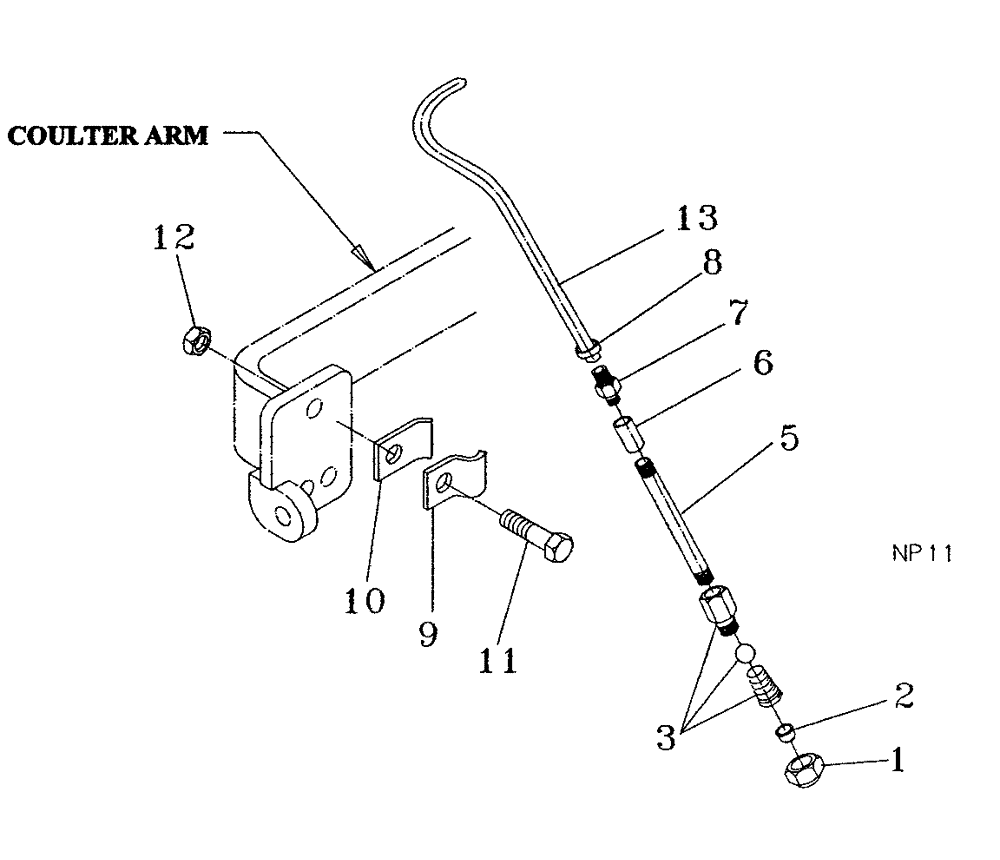

Запчасти Case IH 2800 (75.200.05) - COULTER INJECTOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

05310021

KIT

Injector, And Hardware For One Injector (Not Shown)

1шт.

1

34600031

CAP

Nozzle

1шт.

2

34600010

NOZZLE

Tip, Solid Stream, .055

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600011

NOZZLE

Tip, Solild Stream, .061

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600012

NOZZLE

Tip, Solid Stream, .067

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600013

NOZZLE

Tip, Solid Stream, .078

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600014

NOZZLE

Tip, Solid Stream, .086

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600015

NOZZLE

Tip, Solid Stream, .107

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600025

NOZZLE

Tip, Solid Stream, .047

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600026

NOZZLE

Tip, Solid Stream, .039

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600027

NOZZLE

Tip, Solid Stream, .033

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600028

NOZZLE

Tip, Solid Stream, .125

1шт.

Supplied By Fertilizer Distributor

1шт.

2

34600029

NOZZLE

Tip, Solid Stream, .140

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600030

CHECK VALVE

1шт.

5

15010253

PIPE

1/4" x 6"

1шт.

6

15070251

FLUID COUPLING

1/4", NPT

1шт.

7

15040251

HYD CONNECTOR

1/2" x 3/8", NPT, Hose

1шт.

8

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

9

05310130

CLAMP

Outer

1шт.

10

05310140

CLAMP

Inner

1шт.

11

16910161

BOLT

5/8" x 2", Stainless

1шт.

12

14091002

NUT

5/8", Hex, Stainless

1шт.

13

25630607

HOSE

3/8" x 25"

1шт.
