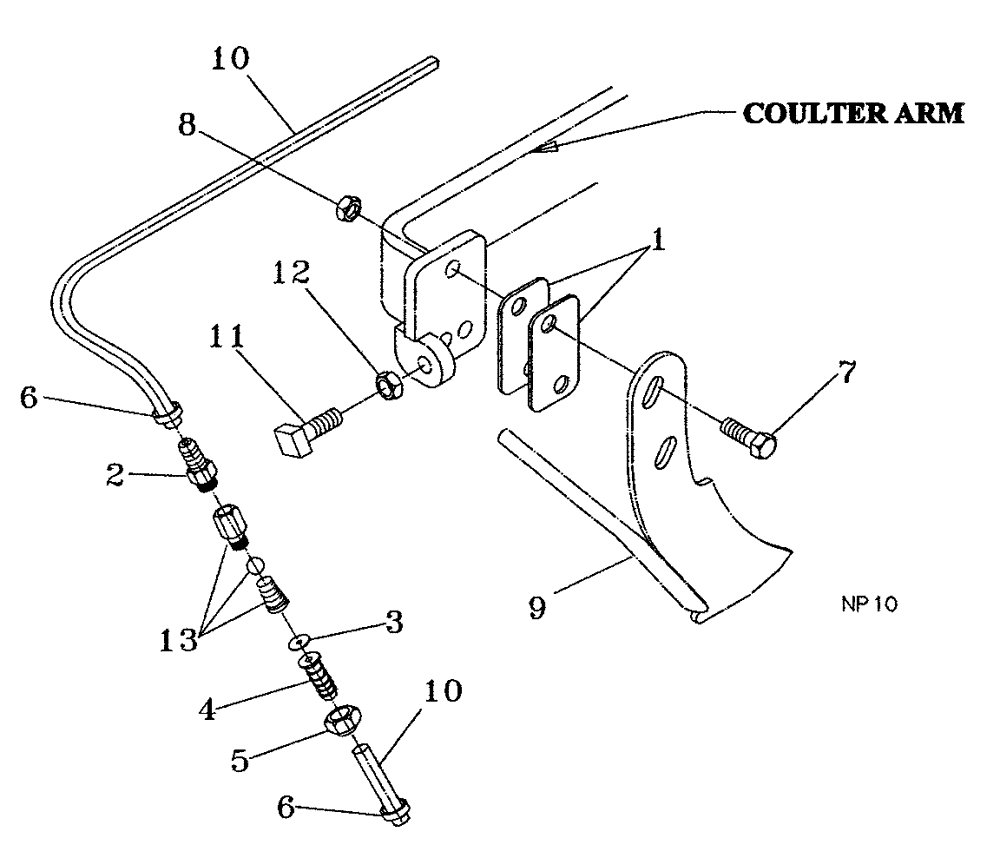

Запчасти Case IH 2800 (75.200.04) - COULTER KNIFE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

P5280010

SERVICE KIT

Knife Hardware, For One Knife (Not Shown)

1шт.

1

05310110

SHIM

16 Gauge

1шт.

1

05310120

SHIM

10 Gauge

1шт.

2

15040251

HYD CONNECTOR

1/4" x 2/8", NPT, Hose

1шт.

3

34600020

ORIFICE

51

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600021

ORIFICE

72

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600022

ORIFICE

98

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600023

ORIFICE

125

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600024

ORIFICE

86

1шт.

Supplied By Fertilizer Distributor

1шт.

4

34600007

PIPE FITTING

3/8" ID, Hose

1шт.

5

34600031

CAP

Nozzle

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

7

16910161

BOLT

5/8" x 2", Stainless

2шт.

8

14091002

NUT

5/8", Stainless

2шт.

9

87437978

KNIFE

With 3/8 Tube

1шт.

10

25630607

HOSE

3/8" x 25'

1шт.

11

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2", Square Head

1шт.

12

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

13

34600030

CHECK VALVE

1шт.

14

05310023

KIT

Check Valve And Orfice (Not Shown)

1шт.
