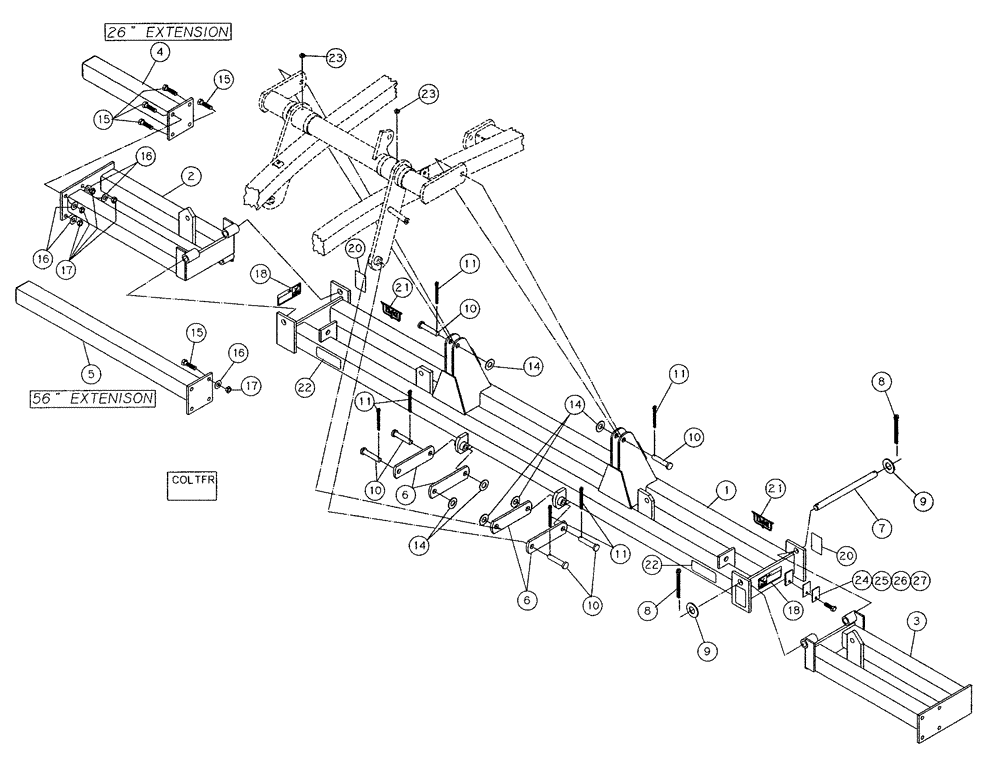

Запчасти Case IH 2800 (75.200.02) - COULTER BAR (09) - CHASSIS/ATTACHMENTS

1

87335449

FRAME ASSY

Coulter Main

1шт.

2

87336814

FRAME ASSY

Wing Coulter, RH

1шт.

3

87336817

FRAME ASSY

Wing Coulter, LH

1шт.

4

87338191

EXTENSION

26", Coulter

2шт.

5

87338192

EXTENSION

56", Coulter

2шт.

6

05302140

LINKAGE

4шт.

7

14892089

PIN

1-1/4", Hinge

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

9

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", Machine

4шт.

10

14816382

SMALL PIN

1" x 3-3/4", Clevis

6шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

12

14816395

CLEVIS

1" x 4-7/8" (Not Shown)

2шт.

13

1978738C1

HAIR PIN COTTER

3/16" x 3" (Not Shown)

2шт.

14

495-21106

WASHER,1"

Standard

8шт.

15

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

16

492-11075

LOCK WASHER,3/4"

4шт.

17

425-1012

NUT,3/4"-10, G5

Hex

4шт.

18

18534227

DANGER DECAL

Danger

2шт.

19

18534243

REFLECTOR

Amber (Not Shown)

1шт.

20

18534244

REFLECTOR

Red

2шт.

21

18534261

DECAL

DMI

2шт.

22

18534302

DECAL

2800

2шт.

22

87019498

FITTING

1/8" Pipe Spcl Taper Drive

2шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

24

04626140

SHIM

1/4 Thick

2шт.

25

04626130

SHIM

(.113 Thick)

2шт.

26

04626120

SHIM

(.076 Thick)

4шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.
