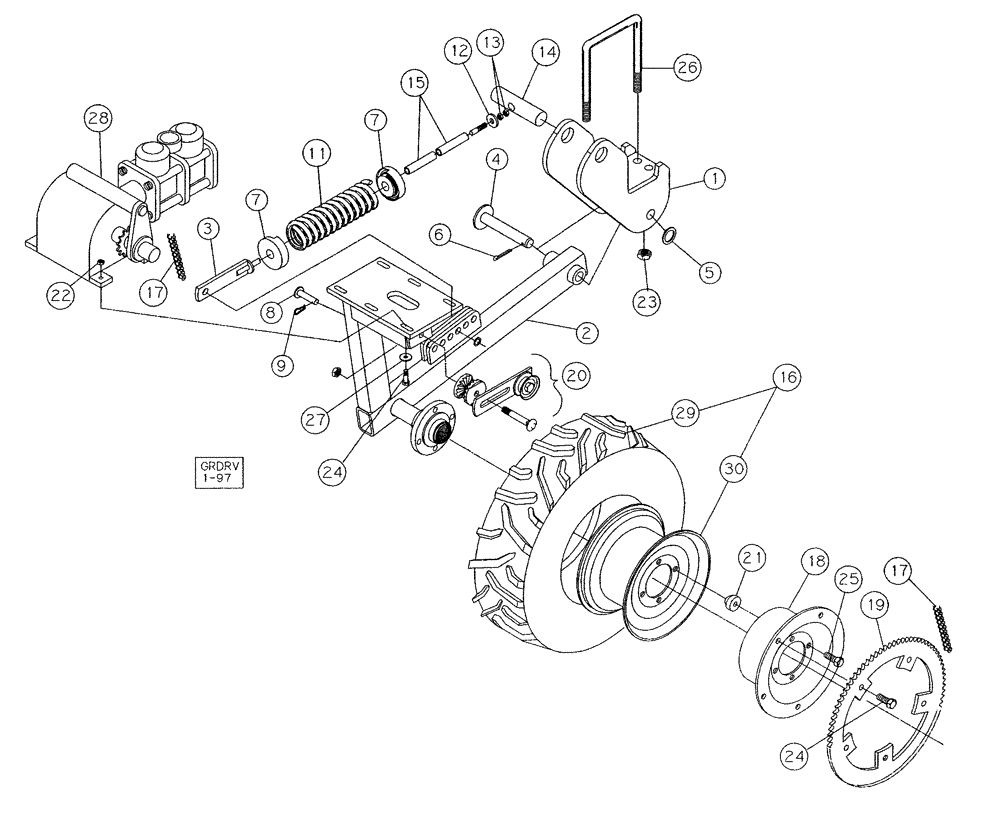

Запчасти Case IH 2800 (75.200.01) - GROUND DRIVE (09) - CHASSIS/ATTACHMENTS

05302680

MOUNTING PARTS

Ground Drive (Not Shown)

1шт.

1

05302690

MOUNTING PARTS

Pump

1шт.

2

05302630

MOUNTING PARTS

Spindle

1шт.

3

05302660

SPRING

Linkage

1шт.

4

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 x 5.81", EL

1шт.

5

495-21106

WASHER,1"

Standard

1шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

7

20090100

HOLDER

Spring

2шт.

8

14810090

X

5/8 x 1-5/8, EL

1шт.

9

14720411

COTTER PIN

PIN, COTTER 1/8, Hair

1шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard (Not Shown)

1шт.

11

24143901

COMPRESSION SPRING

1шт.

12

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

Special

1шт.

13

425-168

NUT,1/2"-13, G5, Hvy

Hex

2шт.

14

05302670

TRUNNION

1шт.

15

06210370

BUSHING

2шт.

16

87461161

WHEEL ASSY.

7.0 x 14, 4 Ply, Tire & Wheel

1шт.

17

21205020

CHAIN

50, Roller, Stainless Steel

1шт.

18

34120010

ADAPTER

Sprocket Hub

1шт.

19

34120011

SPROCKET

Roller Chain 60T

1шт.

20

34120012

IDLER

Single Spool With Bracket

1шт.

21

34120013

SPACER

4шт.

22

425-106

NUT,3/8"-16, Cl 5

Hex

4шт.

23

425-1012

NUT,3/4"-10, G5

Hex

4шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

25

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

4шт.

26

87427185

U-BOLT

3/4" x 4" x 5-1/2"

2шт.

27

495-21044

WASHER,3/8"

Standard

4шт.

28

84315373

PUMP

NGP7055, John Blue, Components NSS

1шт.

28

84315374

PUMP

NGP9055, John Blue, Components NSS

1шт.

28

34120001

FEED PUMP

John Blue, LM4455, if equipped

1шт.

29

NSS

NOT SOLD SEPARAT

7.00 x 14, 4 Ply, Traction Tire to John Blue, LM4455, i

1шт.

30

87461168

WHEEL ASSY.

14 x 5, KB

1шт.

28

34120002

FEED PUMP

Double, John Blue, LM4955, if equipped

1шт.
