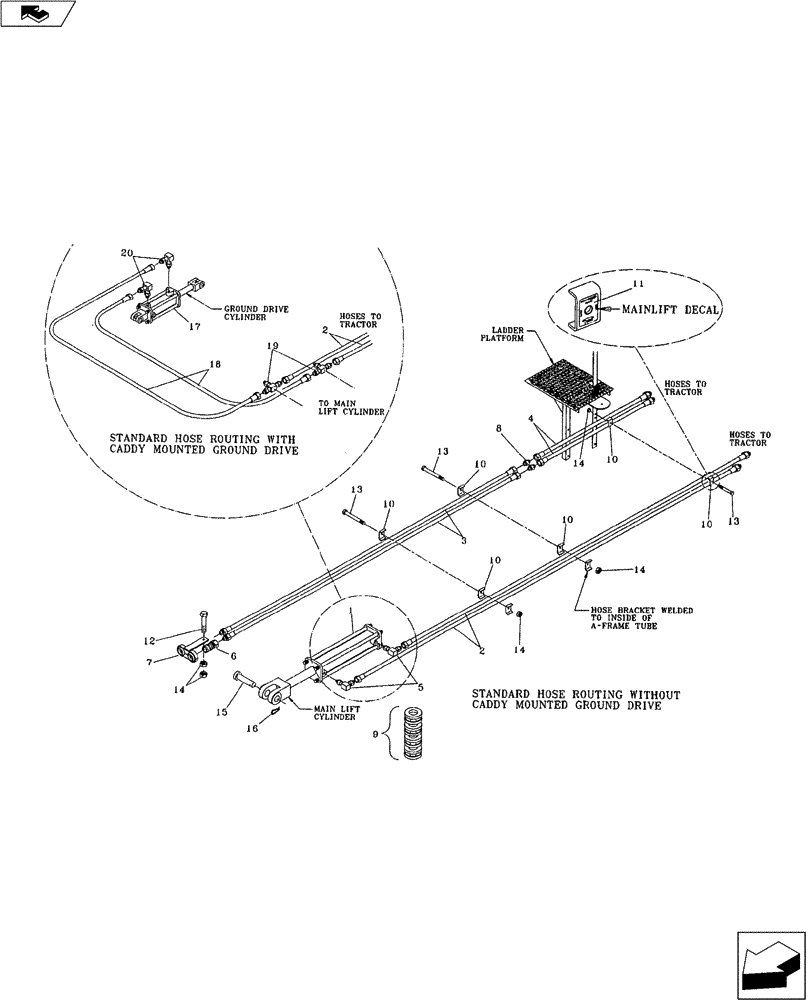

Запчасти Case IH 1000 (35.100.01) - STANDARD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25040084

CYLINDER ASSY.

4" Bore x 8" Stroke Hydraulic

1шт.

2

25600862

1/2" Hydraulic x 210"

2шт.

3

25600657

HOSE ASSY.

3/8" Hydraulic x 150"

2шт.

4

25600645

HOSE ASSY.

3/8" Hydrualic x 80"

2шт.

5

25707521

ELBOW

3/4" JICM x 3/9" SAEM x 90°

2шт.

6

25705011

COUPLING, QUICK, FEM

2шт.

7

25705012

COUPLING

Breakaway Frame

1шт.

8

25707501

HYD CONNECTOR

3/4" Male

2шт.

9

25800010

CYLINDER

Stroke Control Kit - 1-1/4" Rod

1шт.

10

06200125

HOSE CLAMP

Painted

6шт.

11

18534237

DECAL

Cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" NC Hex. Bolt

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" NC Hex. Bolt

3шт.

14

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

5шт.

15

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

16

NSS

NOT SOLD SEPARAT

1/8" x 2" Cotter Pin

2шт.

17

25020040

CYLINDER ASSY.

2" X 4" Hydraulic

1шт.

18

25600676

HYDRAULIC HOSE,0.38" ID x 88.00", SAE 100R17

2шт.

19

25707522

3 WAY CONNECTION

3/4" JICM x 3/4" SAEM

2шт.

20

25705601

ELBOW

9/16" SAEM x 3/4" JICM 90°

2шт.
