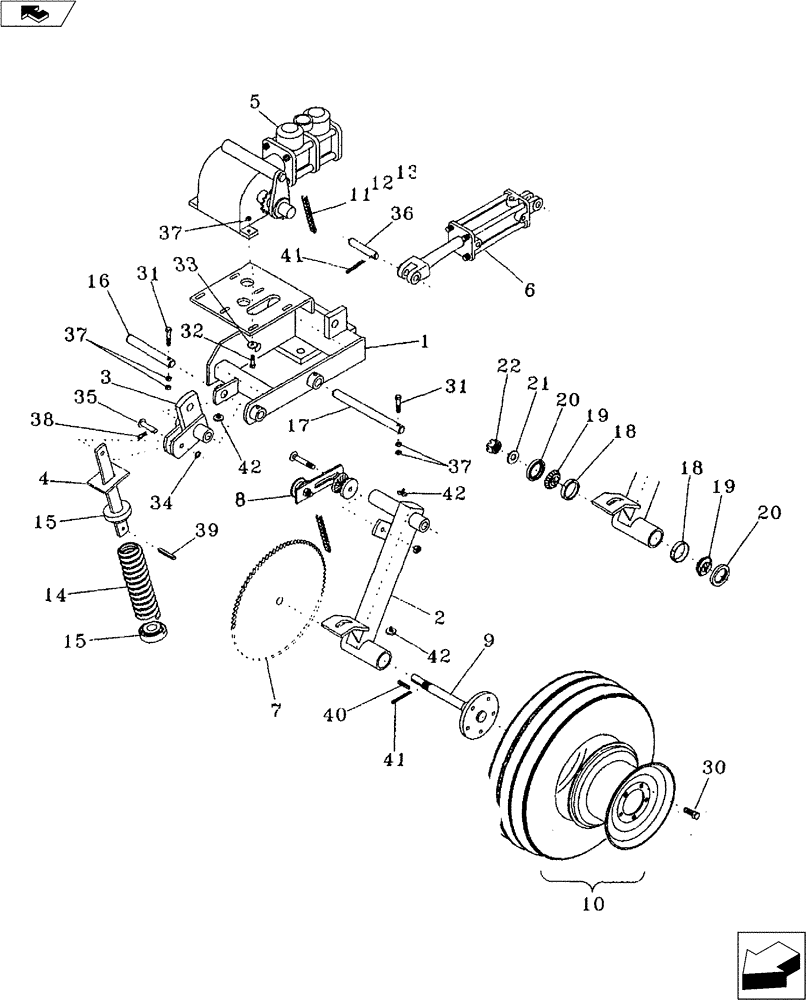

Запчасти Case IH 1000 (29.200.02) - CADDY MOUNTED GROUND DRIVE (29) - HYDROSTATIC DRIVE

P0530018

with Pump (Not Shown)

1шт.

P0530019

Less Pump (Not Shown)

1шт.

1

05301090

Pump Mount

1шт.

2

05301080

Pivot, Spindle

1шт.

3

05301070

Pivot Lug

1шт.

4

05300840

SPRING

Linkage

1шт.

5

34120001

FEED PUMP

John Blue LM4455

1шт.

6

25020040

CYLINDER ASSY.

2" Bore x 4" Stroke Hydraulic

1шт.

7

34120006

SPROCKET

#50 60-Tooth with Hub

1шт.

8

34120012

IDLER

Single Spool with Bracket

1шт.

9

05301030

Pump Mount

1шт.

10

10008100

WHEEL ASSY.

20.5" x 8" x 5" Bolt Tire Assembly

1шт.

11

21205009

50 Single Roller 60 Links

1шт.

12

21215010

LIFT LINK

Single Connecting #50

1шт.

13

21215012

LIFT LINK

Single Offset Connecting #50

1шт.

14

24143900

SPRING

Compression

1шт.

15

20090110

SPRING BOX

Holder Casting

2шт.

16

14891659

SPECIAL PIN

1" O.D. x 7-1/4"

1шт.

17

14891691

1' O.D. x 11-1/4"

1шт.

18

21881980

BEARING, CUP

1.98" O.D. L44510

2шт.

19

21871000

BEARING CONE

1" Bore L44643

2шт.

20

21931375

SEAL

1-3/8" I.D. X 2" O.D.

2шт.

21

05301025

SPACER

Seal

1шт.

22

14051603

SLOTTED NUT

1"-14 NF Slotted

1шт.

30

16408053

SPECIAL BOLT

1/2" x 1" NF Wheel

5шт.

31

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" Hex. Bolt Gd. 5

2шт.

32

NSS

NOT SOLD SEPARAT

3/8" X 1-3/4" NC Hex. Bolt Gd. 5

4шт.

33

NSS

NOT SOLD SEPARAT

3/8" Standard Flat Washer

4шт.

34

NSS

NOT SOLD SEPARAT

1/2" Standard Flat Washer

1шт.

35

14808204

1/2" Dia. x 2-1/2"

1шт.

36

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

37

NSS

NOT SOLD SEPARAT

3/8" Hex. Nut

8шт.

38

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

39

14741412

ROLL PIN

7/16" x 2-1/2"

1шт.

40

21000304

3/16" Square

1шт.

41

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

2шт.

42

15302005

FITTING

1/8" NPT Grease Zerk

3шт.
