(75.200.02) - COLTER KNIFE

Запчасти Case IH 1000 (75.200.02) - COLTER KNIFE (75) - SOIL PREPARATION

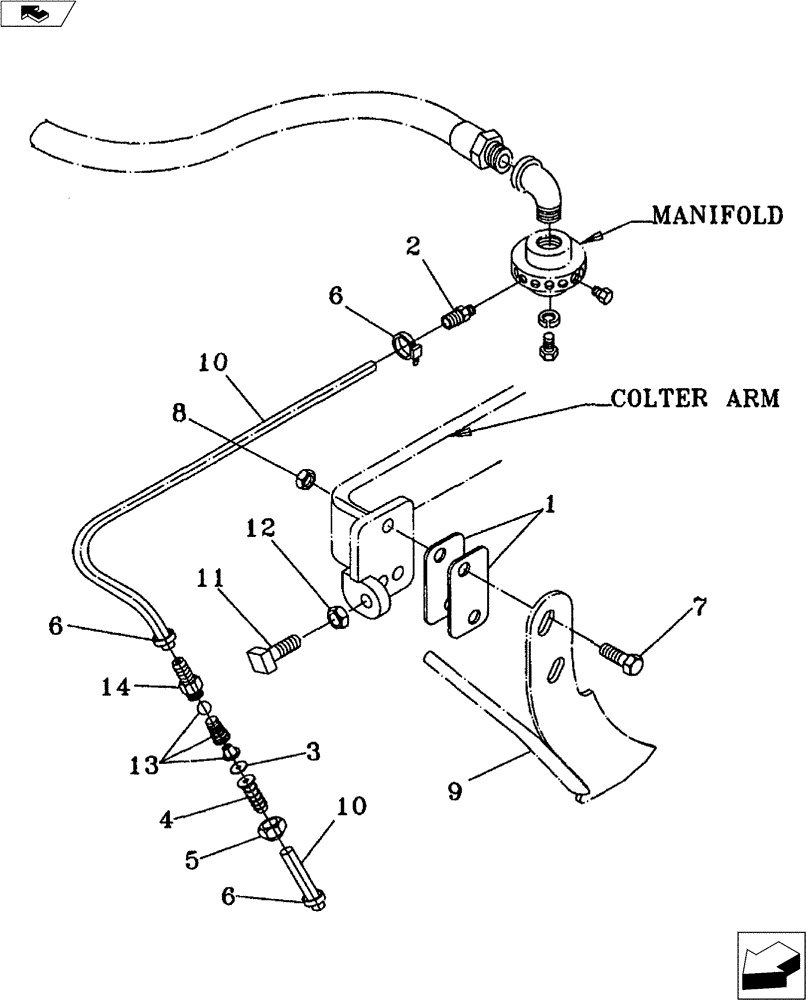

Схема запчастей Case IH 1000 - (75.200.02) - COLTER KNIFE (75) - SOIL PREPARATION
14
10
11
10
6
8
1
9
6
6
3
2
4
7
12
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

05310002

Knife Hardware Kit - Enough Hardware for (1) Knife, Includes Ref. 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12 (Not Shown)

1шт.

1

05310110

SHIM

16 Gauge

1шт.

1

05310120

SHIM

10 Gauge

1шт.

2

15040251

HYD CONNECTOR

1/4" NPT 3/8" Hose Barb

1шт.

3

NSS

NOT SOLD SEPARAT

Orifice Plate

1шт.

4

34600007

PIPE FITTING

Hose Barb 3/8" I.D.

1шт.

5

34600009

CAP

Nozzle

1шт.

6

22510600

3/8" Hose

1шт.

7

NSS

NOT SOLD SEPARAT

5/8 x 2" NC Hex., Bolt

1шт.

8

NSS

NOT SOLD SEPARAT

5/8" NC Hex., Nut

1шт.

9

33607014

KNIFE

3/8" Tube

1шт.

10

25630601

HOSE

3/8" x 166" Long

1шт.

11

16812084

SET SCREW,3/4" - 10 x 2"

3/4" NC x 2" Sq. Hd. Set

1шт.

12

NSS

NOT SOLD SEPARAT

3/4" Jam Nut

1шт.

13

34600004

1шт.

14

34600019

NOZZLE HOLDER

T-J Body With Hose Barb

1шт.

15

05310008

Check Valve And Orifice, Bag Includes Ref. 3, 4, 5, 6, 13 & 14

1шт.
