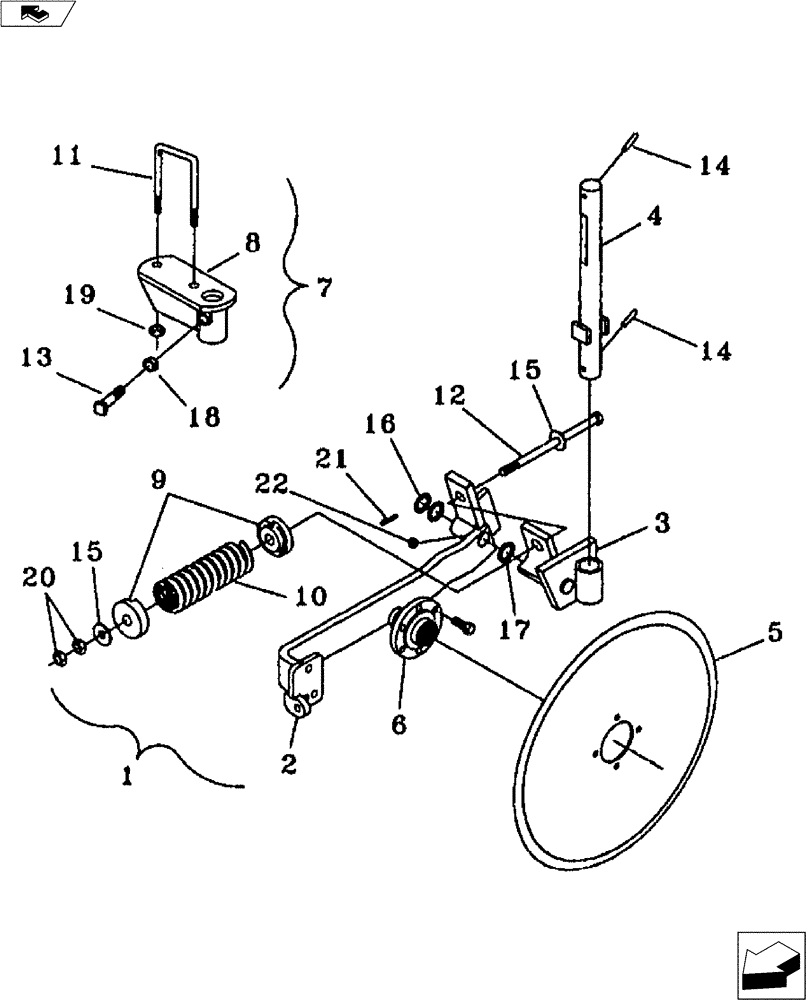

Запчасти Case IH 1000 (75.200.01) - LIQUID COLTER (75) - SOIL PREPARATION

05310015

COULTER

20" Less Mounting Option, Includes Ref. 1, 4, 5 & 14

1шт.

1

05310100

COULTER

Arm Assembly 20", Include Ref. 2, 3, 9, 10, 12, 15, 16, 17, 20, 21, & 22

1шт.

2

05310200

ARM

Colter 20"

1шт.

3

04663200

BAR ASSY.

Colter Pivot

1шт.

4

04663150

BAR ASSY.

Colter Shaft 20" x 1-3/4" Dia.

1шт.

5

33502043

PLOW DISC

Colter Blade 20", Rippled

1шт.

6

28063321

HUB ASSY.

633 Spindle

1шт.

7

04663400

BAR ASSY.

Standard Mount with Hardware, 4" x 4" Tube

1шт.

7

04663800

MOUNTING PARTS

Standard with Hardware, 4" x 6" Tube

1шт.

8

04663410

BAR ASSY.

Standard Mount for 1- 3/4" Dia. Shaft

1шт.

9

20090050

HOLDER

Spring Casting

2шт.

10

24143880

COMPRESSION SPRING

1шт.

11

16312220

U-BOLT

3/4" NC x 4" x 5-1/2"

1шт.

11

16312020

U-BOLT

BOLT "U" 3/4" NC x 4" x 8" (4" x 6" Tube)

1шт.

12

16010440

5/8" NC x 11 " Hex., Bolt

1шт.

13

16812084

SET SCREW,3/4" - 10 x 2"

3/4" NC x 2" Sq. H.D. Set

1шт.

14

14741412

ROLL PIN

7/16" x 2-1/2"

2шт.

15

17411012

WASHER

5/8" x 1-1/4" Thick

2шт.

16

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1 1/4 Machine - 14 Ga.

2шт.

17

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1 1/4" Maching - 10 Ga.

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

19

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

2шт.

20

NSS

NOT SOLD SEPARAT

5/8" NC Heavy Hex., Nut

2шт.

21

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

22

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
