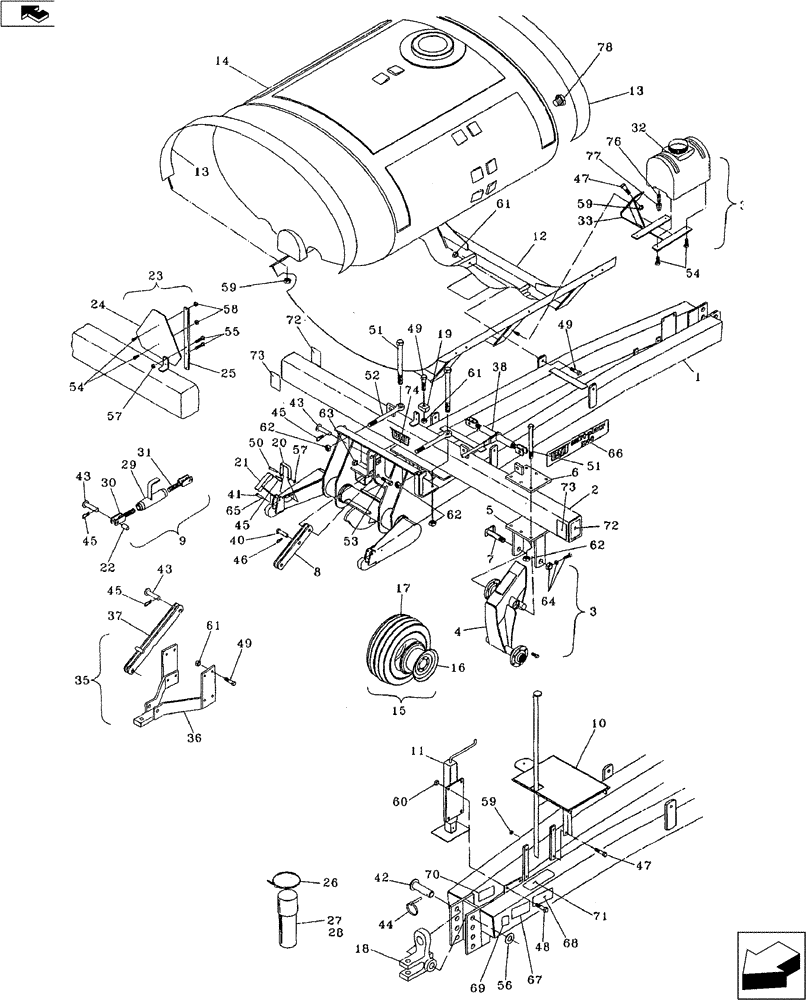

Запчасти Case IH 1000 (39.100.01) - NUTRI-PLACR 1000 (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
05300100
1шт.
2
05300200
Wheel
1шт.
3
05300370
Tandem, 803 LH, Includes Ref. 4, 5, 7, & 64
1шт.
3
05300380
Tandem, 803 RH (Shown), Includes Ref. 4, 5, 7 & 64
1шт.
4
05300300
Tandem, 803 LH with Bearings
1шт.
4
05300350
Tandem, 803 RH (Shown) with Bearings
1шт.
5
05300450
Mount, LH
1шт.
5
05300400
Mount, RH (Shown)
1шт.
6
05300410
Mount
2шт.
7
05300330
PIN
Axle
2шт.
8
05300140
LIFT LINK
Transport
1шт.
9
05300500
Include Items Ref. 29, 30 & 31
1шт.
10
05300600
Platform
1шт.
11
32223000
JACK ASSY.
1шт.
12
05300700
Mount
1шт.
13
05300750
SECURING STRAP
Strap
3шт.
14
30001000
1000 Gallon
1шт.
15
10010160
WHEEL ASSY.
12.5L x 15" Tire Assembly
4шт.
16
10110154
WHEEL
10 x 15 6-Hole
4шт.
17
11012150
TYRE/TIRE
12.5 x 15 x 10-Ply
4шт.
18
20092300
CLEVIS
Combination Hitch
1шт.
19
05300010
2шт.
20
05300040
STOP DEVICE
3-Point Catch
2шт.
21
05300030
3-Point
2шт.
22
05300022
Tumbuckle
1шт.
23
18581000
PRODUCT GRAPHIC
SMV Kit, Includes Ref. 24, 25, & Hardware
1шт.
24
NSS
NOT SOLD SEPARAT
SMV Sign
1шт.
25
NSS
NOT SOLD SEPARAT
SMV Bracket
1шт.
26
22513500
CARRIAGE BOLT
Worm Gear Clamp
1шт.
27
30026030
TUBE
Operator's Manual Canister
1шт.
28
00100621
OIL SEAL
Operator's Manual
1шт.
29
05300510
1шт.
30
05300520
Threaded RH
1шт.
31
05300530
Threaded LH
1шт.
32
30000008
TANK
8 Gal. Wash
1шт.
33
05301200
1шт.
34
P0530007
Wash, Opt. Includes Ref. 32, 37, & Hardware (Not Shown)
1шт.
35
P0530020
Pull, Opt. Includes Ref. 36, 37 & Hardware
1шт.
36
05300900
Pull-Between
1шт.
37
05300950
Pull Hitch
1шт.
38
32400100
TURNBUCKLE
Ratchet Jack 8" Stroke
2шт.
40
14816180
HEADED PIN
1 " x 3" Clevis
1шт.
41
14808201
CLEVIS PIN
1/2" x 2-1/2" EL Clevis Pin
2шт.
42
14820525
HITCH PIN,41.28mm OD x 204.72mm L
1-5/8" O.D.
1шт.
43
14820362
PIN
1-1/4" O.D. x 4-1/2" Clevis
2шт.
44
14710816
PIN, LOCKING
7/16" Dia. x 1-3/4" Klik
1шт.
45
NSS
NOT SOLD SEPARAT
3/16" x 3" Hair Pin
3шт.
46
NSS
NOT SOLD SEPARAT
1/8" x 2" Hair Pin
1шт.
47
NSS
NOT SOLD SEPARAT
1/2" x 1-1/2" NC Hex. Bolt
6шт.
48
NSS
NOT SOLD SEPARAT
5/8" x 2" NC Hex. Bolt, Gd. 5
4шт.
49
NSS
NOT SOLD SEPARAT
3/4" x 2-1/2" NC Hex. Bolt, Gd. 5
6шт.
50
NSS
NOT SOLD SEPARAT
3/8" x 4-1/2" NC Hex. Bolt, Gd. 5
2шт.
51
16014425
BOLT
7/8" 10-1/2" NC Hex., Gd. 5
16шт.
52
16314345
EYEBOLT
7/8" x 8-1/2" NC
4шт.
53
NSS
NOT SOLD SEPARAT
1" x 5" NC Hex. Bolt, Gd. 5
1шт.
54
NSS
NOT SOLD SEPARAT
1/4" x 3/4" NC Hex. Bolt
6шт.
55
NSS
NOT SOLD SEPARAT
3/8" x 1- 1/4" NC Hex. Bolt
2шт.
56
17426001
WASHER
1-5/8' x 1/4" Thick
1шт.
57
NSS
NOT SOLD SEPARAT
3/8' NC Hex. Nut
4шт.
58
NSS
NOT SOLD SEPARAT
1/4" NC Hex. Nut
2шт.
59
NSS
NOT SOLD SEPARAT
1/2"NC Hex. Nut
12шт.
60
NSS
NOT SOLD SEPARAT
5/8" NC Hex. Nut
4шт.
61
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Nut
6шт.
62
NSS
NOT SOLD SEPARAT
7/8" NC Hex. Nut
20шт.
63
NSS
NOT SOLD SEPARAT
1" NC Hex. Nut
1шт.
64
14032408
JAM NUT
1-1/2" Jam, with Set Screw
2шт.
65
NSS
NOT SOLD SEPARAT
1/8" x 1-1/2"
2шт.
66
18534252
Nutri-Placr 1000
2шт.
67
18534140
WARNING DECAL
Hitch Warning Sign
1шт.
68
18534228
DECAL
Caution Sign
1шт.
69
18534203
DECAL
FEMA
1шт.
70
18510009
Serial Number
1шт.
71
18534246
Non-Skid
1шт.
72
18534243
REFLECTOR
Amber
3шт.
73
18534244
REFLECTOR
Red
2шт.
74
18534259
DECAL
DMI Logo
1шт.
75
18531000
Decal (For Repainting Purposes) (Not Shown)
1шт.
76
34308004
HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly
1/2" NPT Short
1шт.
77
34308003
VALVE,1/2" Single Union Poly Valve
1/2" NPTF Union Ball
1шт.
78
34308006
PLUG
2" Pipe
1шт.
Выбрано товаров: 80
