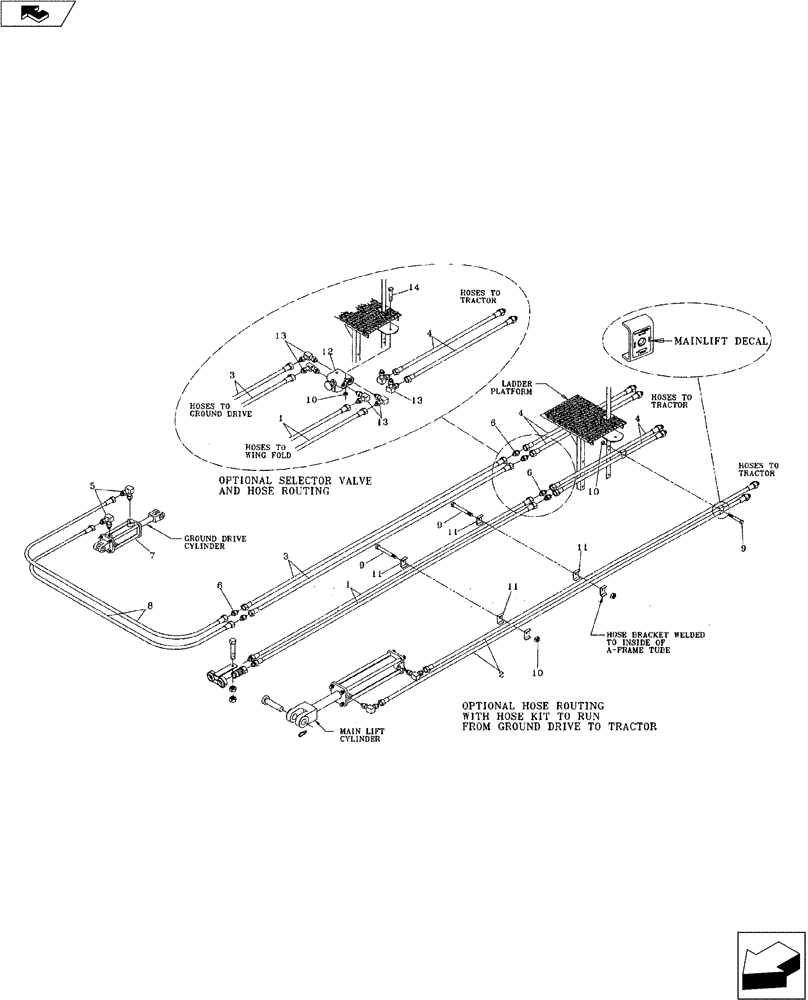

Запчасти Case IH 1000 (35.204.01) - OPTIONAL HOSE ROUTING (WITH HOSE KIT TO RUN FROM GROUND DRIVE TO TRACTOR) (35) - HYDRAULIC SYSTEMS

P0530021

Caddy Ground Drive to Tractor (Not Shown)

1шт.

05300012

Hydraulic Hose Add-on (Not Shown)

1шт.

1

25600657

HOSE ASSY.

3/8" Hydraulic x 150"

2шт.

2

25600862

1/2" Hydraulic x 210"

2шт.

3

25600814

HYDRAULIC HOSE

3/8" x 148"

2шт.

4

25600645

HOSE ASSY.

3/8" Hydraulic x 80"

4шт.

5

25705601

ELBOW

9/16" SAEM x 3/4" JICM 90"

2шт.

6

25707501

HYD CONNECTOR

3/4" Male

4шт.

7

25020040

CYLINDER ASSY.

2" Bore x 4" Stroke Hydraulic

1шт.

8

25600676

HYDRAULIC HOSE,0.38" ID x 88.00", SAE 100R17

2шт.

9

NSS

NOT SOLD SEPARAT

3/8" x 3" Hex. Bolt

3шт.

10

NSS

NOT SOLD SEPARAT

3/8" Hex. Nut

3шт.

11

06200125

HOSE CLAMP

Painted

3шт.

11

05300015

Selector Option

1шт.

12

25401000

VALVE

Selector

1шт.

13

25707521

ELBOW

3/4" JICM x 3/4" SAEM 90°

6шт.

14

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" Hex. Bolt

2шт.
