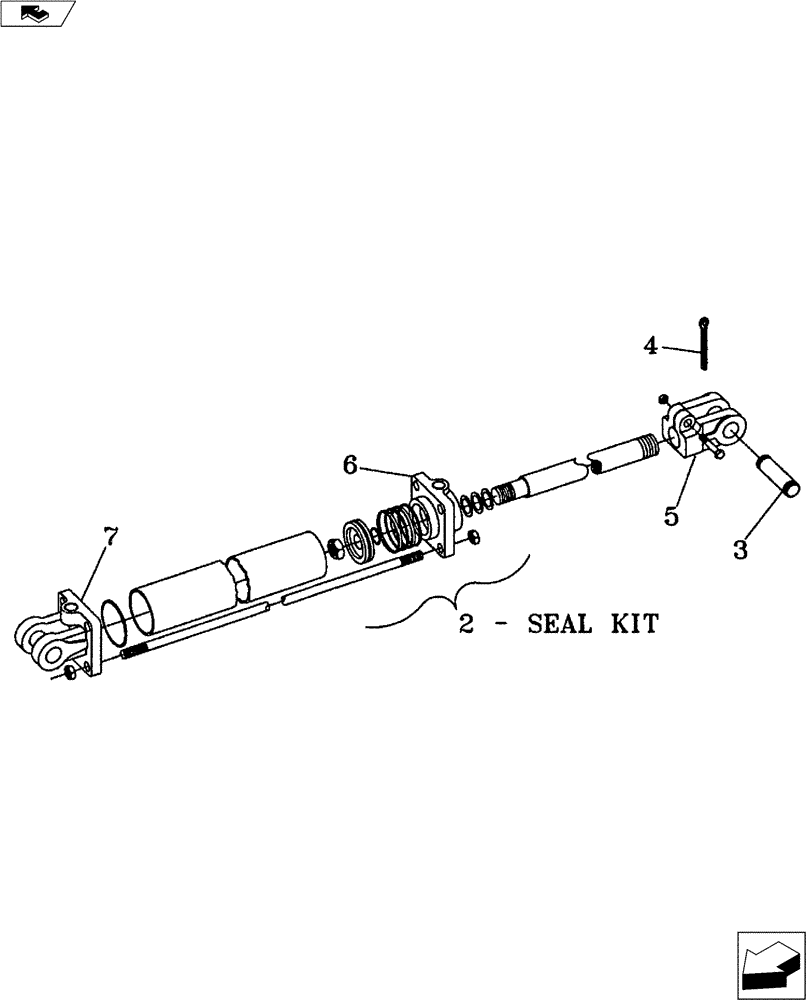

Запчасти Case IH 1000 (35.100.02) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

25020040

CYLINDER ASSY.

2" x 4" Stroke SAE Ports (14-1/4" Closed) (Not Shown)

1шт.

1

25040084

CYLINDER ASSY.

4" x 8" Stroke SAE Ports (20-1/4" Closed) (Not Shown)

1шт.

2

25803050

KIT

Seal - 1-1/16" Dia. Rod

1шт.

2

25804060

Seal - 1-1/4" Dia. Rod

1шт.

3

14816241

CLEVIS PIN

1" dia. X 3" E.L. (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

4шт.

5

NSS

NOT SOLD SEPARAT

Rod Clevis - 1-1/4" NF

1шт.

5

25804061

1-1/4" NF

1шт.

6

NSS

NOT SOLD SEPARAT

Cylinder Head - 3/4" SAE Ports

1шт.

6

25804062

3/4" SAE Ports

1шт.

7

NSS

NOT SOLD SEPARAT

Cylinder Base - 3/4" SAE Ports

1шт.

7

25804063

3/4" SAE Ports

1шт.
