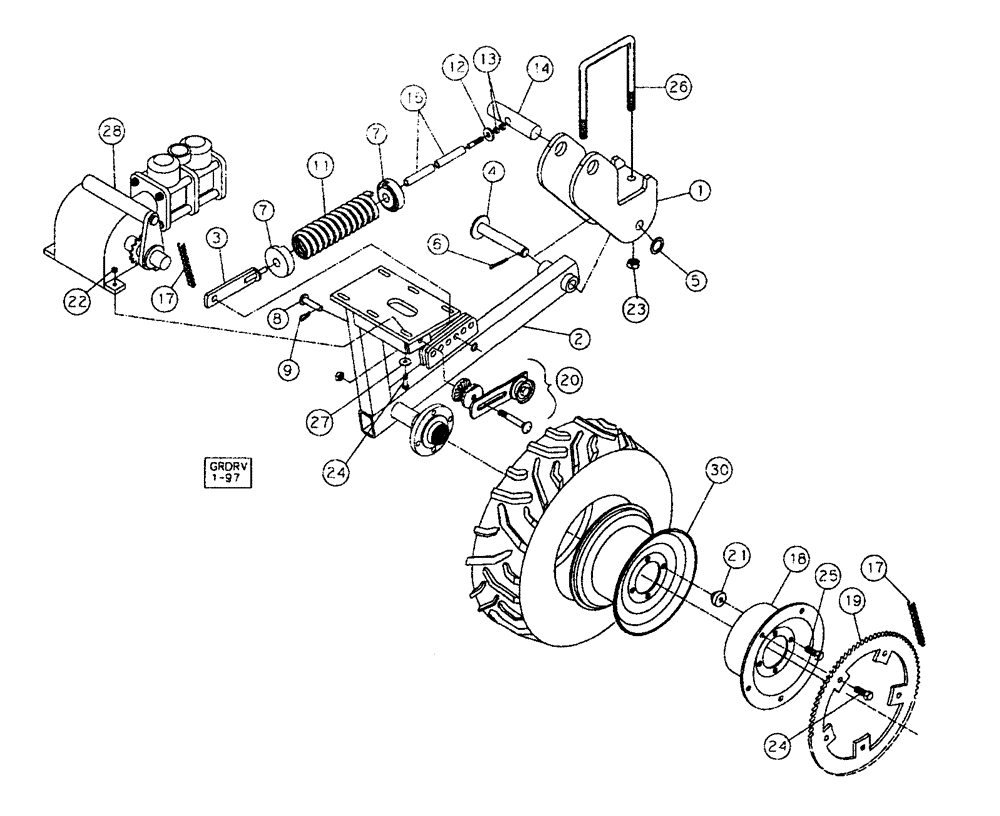

Запчасти Case IH NTX5310 (75.200.18) - GROUND DRIVE PUMP (75) - SOIL PREPARATION

05302680

MOUNTING PARTS

Ground Drive

1шт.

1

05302690

MOUNTING PARTS

Pump

1шт.

2

05302640

MOUNTING PARTS

Spindle

1шт.

4

87430410

SPECIAL PIN

1.00" O.D. x 5.54 EL, ZND

1шт.

5

495-21106

WASHER,1"

Standard

1шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

7

20090102

SPRING BOX

Spring

2шт.

8

14810090

X

5/8 OD x 1-5/8, EL

1шт.

9

14720411

COTTER PIN

PIN, COTTER Split 1/8, Hair

1шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

1шт.

11

24143901

COMPRESSION SPRING

1шт.

12

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

Stud Special

1шт.

13

425-168

NUT,1/2"-13, G5, Hvy

2шт.

14

05302670

TRUNNION

1шт.

15

06210370

BUSHING

Large

2шт.

17

21205020

CHAIN

Roller #50, Stainless Steel

1шт.

18

34120010

ADAPTER

Hub Sprocket

1шт.

19

34120011

SPROCKET

60T, Roller Chain

1шт.

20

34120012

IDLER

Single Spool with Bracket

1шт.

21

34120013

SPACER

4шт.

22

425-106

NUT,3/8"-16, Cl 5

NC

4шт.

23

425-1012

NUT,3/4"-10, G5

NC

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

NC

5шт.

25

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

NF Wheel

4шт.

26

87427185

U-BOLT

3/4 x 4 x 5-1/2

1шт.

27

495-21044

WASHER,3/8"

4шт.

28

34120002

FEED PUMP

John Blue, LM4955

1шт.

30

87461168

WHEEL ASSY.

14 x 5KB, SAE #401

1шт.
