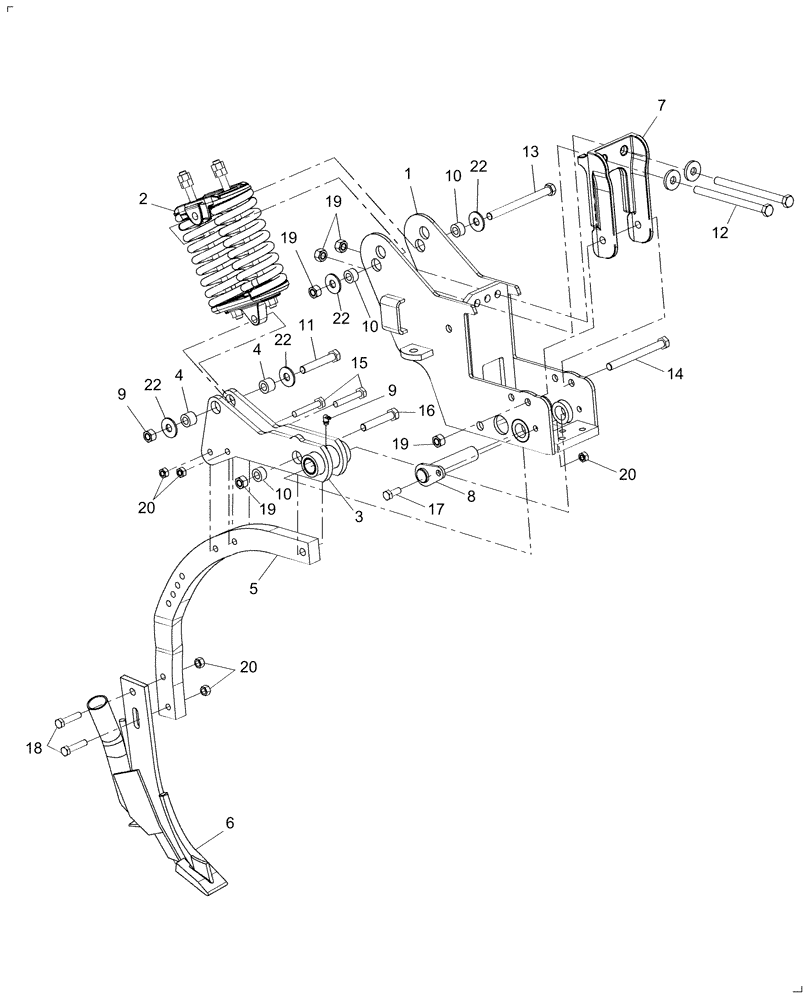

Запчасти Case IH NTX5310 (75.200.03) - HCS SHANK ASSEMBLY 2010 AND AFTER MODELS (09) - CHASSIS/ATTACHMENTS

1

84236985

MOUNT

1шт.

2

20090133

HINGE

1шт.

3

87532493

PIVOT

3шт.

4

87515446

BUSHING

2шт.

5

33020031

SHANK

1шт.

6

33607135

KNIFE

NH3 Only

1шт.

6

33607130

KNIFE

Strip Till, Dry & NH3 Combination

1шт.

7

84223909

MOUNT

1шт.

8

87376362

PIN,31.75mm OD x 162.05mm L

1шт.

9

86992216

NUT

6шт.

10

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

3шт.

11

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

1шт.

12

86507001

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

2шт.

13

16901024

BOLT

1шт.

14

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

1шт.

15

16908128

BOLT

2шт.

16

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

17

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

18

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

19

86992216

NUT

6шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

22

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

6шт.

23

84403658

SHANK

Incl 1 - 5, 8 - 11, 13, 15 - 17, 19 - 22

1шт.
