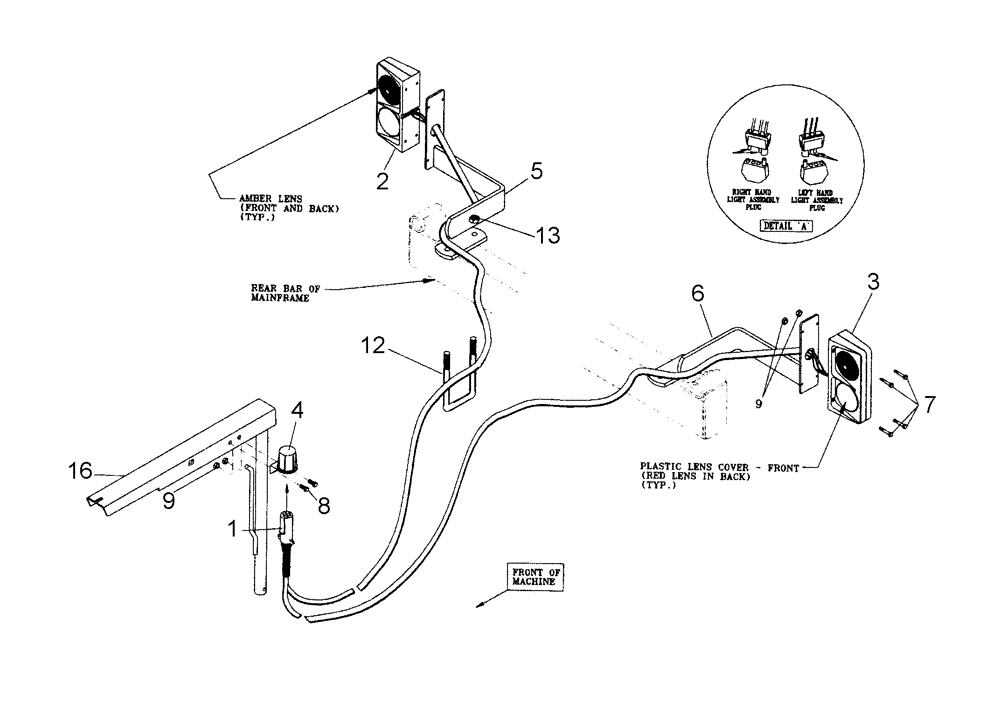

Запчасти Case IH NPX5300 (55.404.01) - WARNING AND TAILLIGHT KIT 2006 AND PRIOR UNITS (04) - ELECTRICAL SYSTEMS

1

87446784

WIRE HARNESS

1шт.

2

27601212

LIGHT ASSY.

Rh

1шт.

3

27601213

LIGHT ASSY.

Lh

1шт.

4

27601214

HOLDER

Plug Storage

1шт.

5

04681710

BRACKET

Rh

1шт.

6

04681720

BRACKET

Lh

1шт.

7

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

86992211

NUT

1/4, NC, Hex

10шт.

10

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP Not Shown

1шт.

11

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

12

87427170

U-BOLT

BOLT "U" 5/8 x 4 x 8

2шт.

13

231-42410

LOCK NUT,5/8"-11, GB

4шт.

14

27601215

LENS

Amber

1шт.

15

27601216

LENS

Red

1шт.

16

05302150

STAND

Hose Support, Not Included In Light Kit

1шт.
