Запчасти Case IH NPX5300 (75.200.21[01]) - SINGLE PISTON TANK FITTINGS 2009 AND PRIOR (09) - CHASSIS/ATTACHMENTS

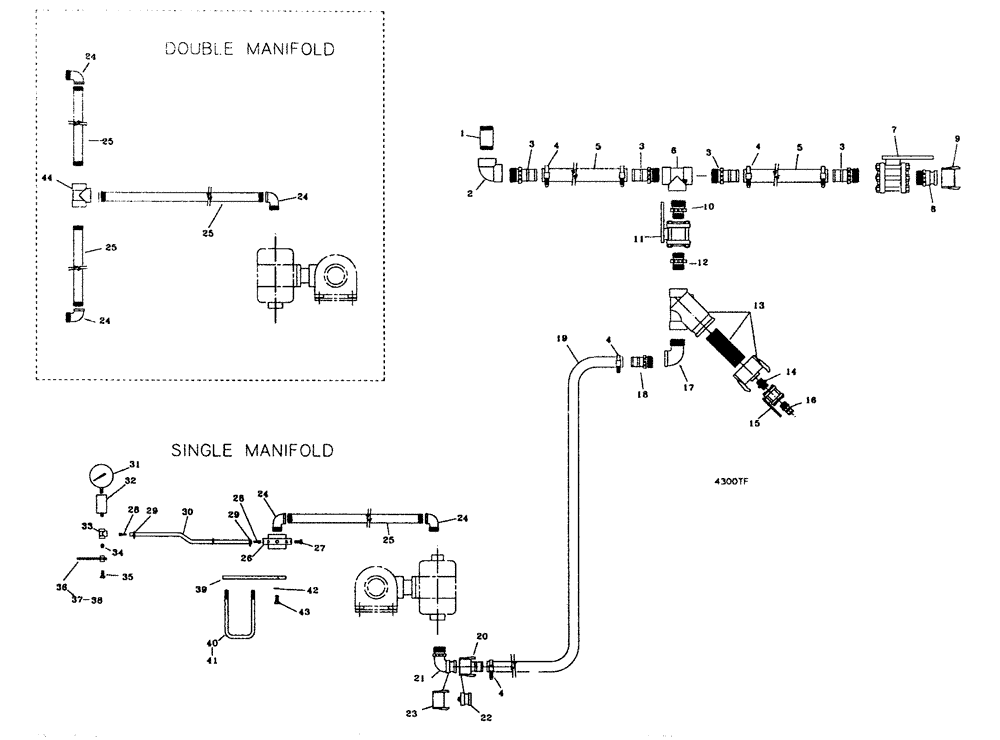

Схема запчастей Case IH NPX5300 - (75.200.21[01]) - SINGLE PISTON TANK FITTINGS 2009 AND PRIOR (09) - CHASSIS/ATTACHMENTS
3
3
21
29
5
17
30
14
15
18
11
37
25
16
8
43
42
4
2
28
27
29
19
24
13
40
23
24
44
26
35
36
9
5
4
4
31
41
25
38
39
12
10
24
24
25
3
7
28
25
20
34
24
4
32
6
3
33
1
22

Артикул

Название

Примечание

Количество

1

34316006

HYD CONNECTOR

Short, 2, NPT

1шт.

2

34316002

ELBOW

2, NPTF

1шт.

3

34316003

PIPE FITTING

2 Hose Barb, NPT

4шт.

4

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

6шт.

5

25732006

HYDRAULIC HOSE

2 Plastic

1шт.

6

34316005

TEE

2, NPTF

1шт.

7

34216001

VALVE,2" Full Port Valve

2, Ball

1шт.

8

34316002

ELBOW

2, Male

1шт.

9

34416022

DUST CAP,2" Cap

2

1шт.

10

34316001

REDUCER FITTING

1шт.

11

34212001

VALVE,1-1/2" Full Port Valve

1-1/2, Ball

1шт.

12

34312002

HYD CONNECTOR

Short, 1-1/2, NPT

1шт.

13

34212002

STRAINER ASSY.,1 1/2 LINE STRAINER

Line, 1-1/2 x 1-1/2, NPT

1шт.

14

34308000

NIPPLE,1" NPT x 1" NPT, Poly

Short, 1

1шт.

15

34208000

VALVE

Ball, 1

1шт.

16

34308001

PIPE FITTING,1" NPT x 1" Hose Barb, Poly

Hose, 1 NPTM

1шт.

17

34312005

ELBOW

1-1/2, Street

1шт.

18

34312001

PIPE FITTING

1-1/2, NPT

1шт.

19

25731505

HOSE

1-1/2 x 5

1шт.

20

34412012

PUSH-PULL COUPLING

1-1/2, NPTF

1шт.

21

34312012

ELBOW

Male, 90 Degrees

1шт.

22

34412022

PLUG

Dust

1шт.

23

34412032

CAP

1шт.

24

34308002

ELBOW,1" NPT, Poly

Street, 1 NPT

1шт.

25

25674945

HOSE

1 x 84

1шт.

26

34199024

VENT MANIFOLD

14 Outlet

1шт.

26

34199012

VENT MANIFOLD

18 Outlet

1шт.

27

15020250

PLUG

1/4

1шт.

27

15020120

FITTING

1/8

1шт.

28

15040251

HYD CONNECTOR

1/4 x 3/8

1шт.

28

15040121

ADAPTER

1/8 x 3/8

1шт.

29

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

30

25630601

HOSE

3/8 x 166

1шт.

31

34599015

GAUGE ASSY.,160 PSI

160 PSI, 4 Diameter

1шт.

32

34599011

PROTECTOR

Gauge, 1/4 NPT

1шт.

33

15050250

TEE

1/4

1шт.

34

15010251

LUBE NIPPLE,1/4" NPT x 1-1/2" L

1/4 x 1-1/2

1шт.

35

15020250

PLUG

Pipe, 1/4

1шт.

36

04685250

BRACKET

Gauge Mounting

1шт.

37

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

38

231-4246

LOCK NUT,3/8"-16, GB

1шт.

39

02394010

PLATE

Manifold

1шт.

40

87427170

U-BOLT

BOLT "U" 5/8 x 4 x 8

1шт.

41

425-1010

NUT,5/8"-11, G5

2шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

43

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

Выбрано товаров: 46
