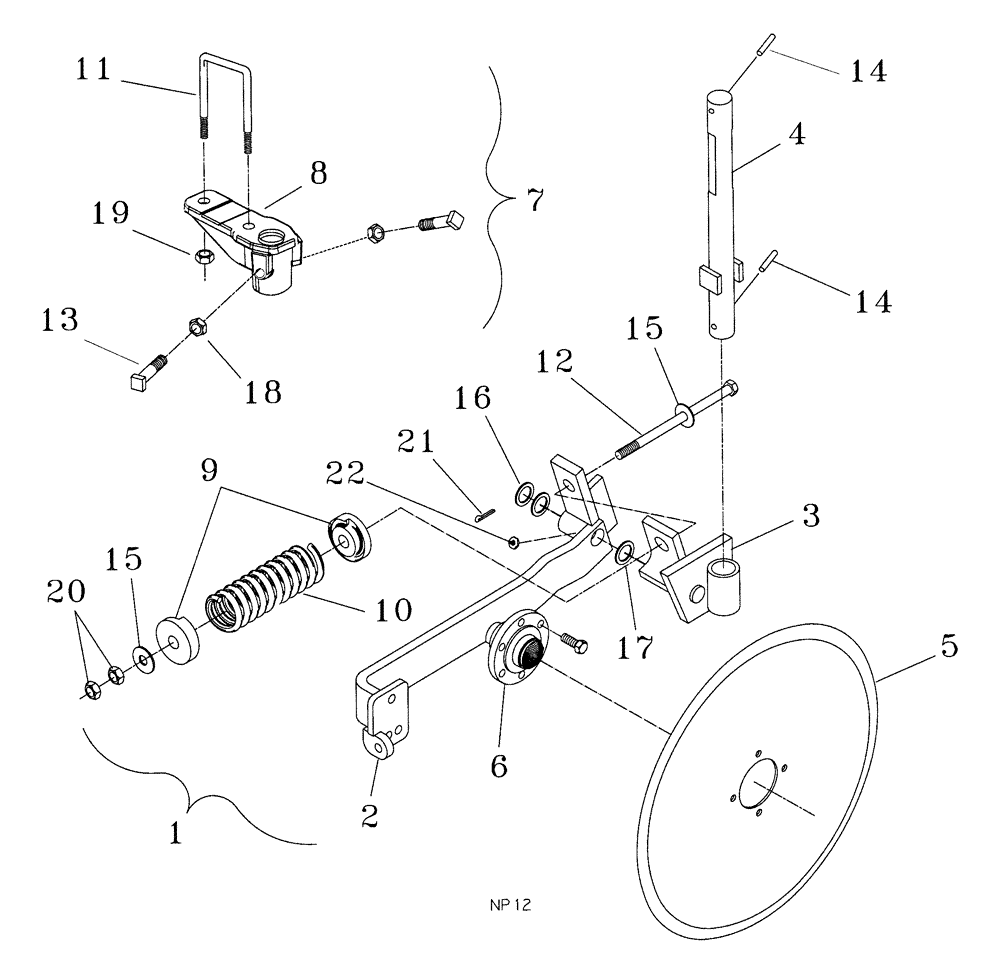

Запчасти Case IH NPX5300 (75.200.18) - LIQUID COULTER (09) - CHASSIS/ATTACHMENTS

P6530015

COULTER

20, Less Mounting Option

1шт.

1

05310100

COULTER

Coulter Arm

1шт.

2

05310200

ARM

Coulter, 20

1шт.

3

04663200

BAR ASSY.

Coulter

1шт.

4

87385591

SHAFT

Coulter

1шт.

5

443627A1

PLOW DISC

HPT BLADES 20" PLAIN 4.5 MM

1шт.

6

28063331

HUB ASSY.

633 Hub And Spindle

1шт.

7

P6466340

KIT

Standard, With Hardware, 4 x 6 Tube

1шт.

7

04663800

MOUNTING PARTS

Standard, With Hardware, 4 x 4 Tube

1шт.

8

04663410

BAR ASSY.

Standard, 1-3/4 Diameter Shaft

1шт.

8

87460812

MOUNTING PARTS

Casting

1шт.

For 2007 Models & After

1шт.

9

20090050

HOLDER

Spring, Casting

2шт.

10

24143880

COMPRESSION SPRING

1шт.

11

87427185

U-BOLT

3/4 x 4 x 5-1/2, NC

1шт.

11

87427182

U-BOLT

BOLT "U" 3/4 x 4 x 8, NC

1шт.

12

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

5/8 x 11, NC

1шт.

13

16812084

SET SCREW,3/4" - 10 x 2"

3/4 x 2, Square Head

1шт.

14

438-32840

PIN,11.1mm OD x 63.5mm L

7/16 x 2-1/2

2шт.

15

495-81028

WASHER,21/32" x 1 1/2" x .240"

5/8 x 1-1/4

2шт.

16

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machine, 14 Gauge

2шт.

17

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine, 10 Gauge

1шт.

18

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

19

425-1012

NUT,3/4"-10, G5

2шт.

20

25-1612

NUT,3/4"-10, G5, Hvy

2шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

22

219-86

LUBE NIPPLE,1/8" NPTF

1шт.
