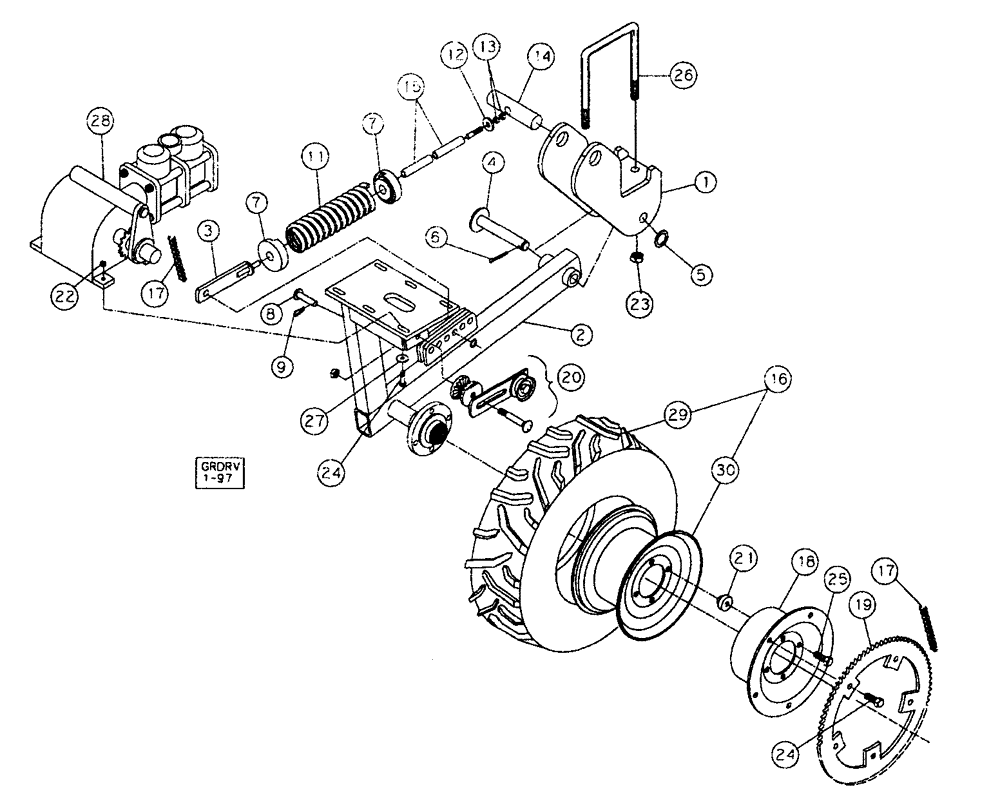

Запчасти Case IH NPX5300 (75.200.17) - TOOL BAR MOUNTED GROUND DRIVE (09) - CHASSIS/ATTACHMENTS

05302680

MOUNTING PARTS

Ground Drive

1шт.

1

05302690

MOUNTING PARTS

Pump

1шт.

2

05302630

MOUNTING PARTS

Spindle

1шт.

3

05302660

SPRING

Spring

1шт.

4

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 OD x 5.81 E.L.

1шт.

5

495-21106

WASHER,1"

1шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

7

20090100

HOLDER

Spring

2шт.

8

14810090

X

5/8 OD x 1-5/8, EL

1шт.

9

14720411

COTTER PIN

PIN, COTTER 1/8, Hair

1шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

5/8, Standard

1шт.

11

24143901

COMPRESSION SPRING

1шт.

12

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

Special

1шт.

13

425-168

NUT,1/2"-13, G5, Hvy

1/2, Heavy

2шт.

14

05302670

TRUNNION

1шт.

15

06210370

BUSHING

2шт.

16

87461161

WHEEL ASSY.

Tire & Wheel, 7.0 x 14, 4 Ply

1шт.

17

21205020

CHAIN

Roller #50, Stainless Steel

1шт.

18

34120010

ADAPTER

Hub Sprocket

1шт.

19

34120011

SPROCKET

60T, Roller Chain

1шт.

20

34120012

IDLER

Single Spool With Bracket

1шт.

21

34120013

SPACER

4шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.

23

425-1012

NUT,3/4"-10, G5

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

25

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

4шт.

26

87427185

U-BOLT

3/4 x 4 x 5-1/2

1шт.

27

495-21044

WASHER,3/8"

4шт.

28

84315373

PUMP

John Blue, NGP7055, Components NSS

1шт.

28

84315374

PUMP

Double, John Blue, NGP9055, Components NSS

1шт.

29

NSS

NOT SOLD SEPARAT

Tire, Traction, 7.00 x 14, 4 Ply

1шт.

30

87461168

WHEEL ASSY.

14 x 5KB, SAE #401

1шт.
