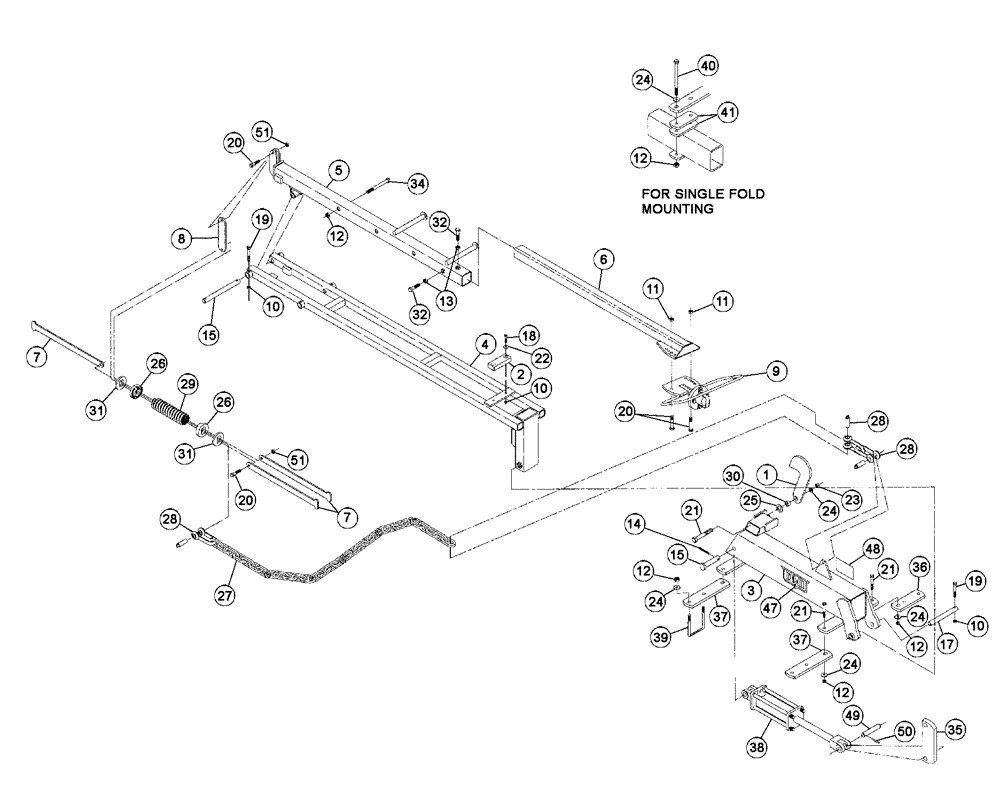

Запчасти Case IH NPX5300 (75.200.15) - ROW MARKER OPTION 4300 ONLY (09) - CHASSIS/ATTACHMENTS

1

04670120

LATCH

2шт.

2

04670230

SPACER

Rubber

2шт.

3

04671430

MOUNTING PARTS

Marker

2шт.

4

04670200

ARM

Inner

2шт.

5

04671460

ARM

Outer

2шт.

6

04673400

ARM

Extension

2шт.

7

04673450

CASTING

Spring

6шт.

8

04671411

LINK ASSY.

2шт.

9

04673550

HUB

Marker With Guard

2шт.

10

86992213

NUT

3/8

10шт.

11

425-108

NUT,1/2" - 13, Gr 5

16шт.

12

425-1010

NUT,5/8"-11, G5

1шт.

13

425-1410

JAM NUT,Jam, 5/8"-11, G5

6шт.

14

432-1632

COTTER PIN,1/4" x 2"

2шт.

15

14816426

CLEVIS

1 x 5-1/4

2шт.

16

14891689

PIN

1 x 11-1/4

2шт.

17

14891644

SPECIAL PIN

1 x 8.88

2шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

19

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

21

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

18шт.

22

495-21044

WASHER,3/8"

4шт.

23

85700693

NUT,5/8" - 11, Gr C

2шт.

24

495-81028

WASHER,21/32" x 1 1/2" x .240"

10шт.

25

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machine, 14 Gauge

2шт.

26

20090111

SPRING BOX

Casting

4шт.

27

22004481

CHAIN

1/4 x 48

2шт.

28

22703101

SHACKLE

5/16, With Pin

6шт.

29

24143891

COIL SPRING

Compression

2шт.

30

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

31

04673480

STOP

4шт.

32

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

34

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

35

04670210

SPINDLE

2шт.

36

04671402

PLATE

4шт.

37

04671403

PLATE

4шт.

38

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16, Hydraulic

2шт.

39

87427170

U-BOLT

BOLT "U" 5/8 x 4 x 8

2шт.

40

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

1шт.

41

04671620

BAR

Spacer

1шт.

47

18534259

DECAL

DMI

2шт.

48

18534285

DECAL

Danger

2шт.

49

25890100

KIT

Cylinder, 1

2шт.

50

432-1232

COTTER PIN,3/16" OD x 2" L

4шт.

51

86992215

LOCK NUT,1/2"-13, GC

2шт.
