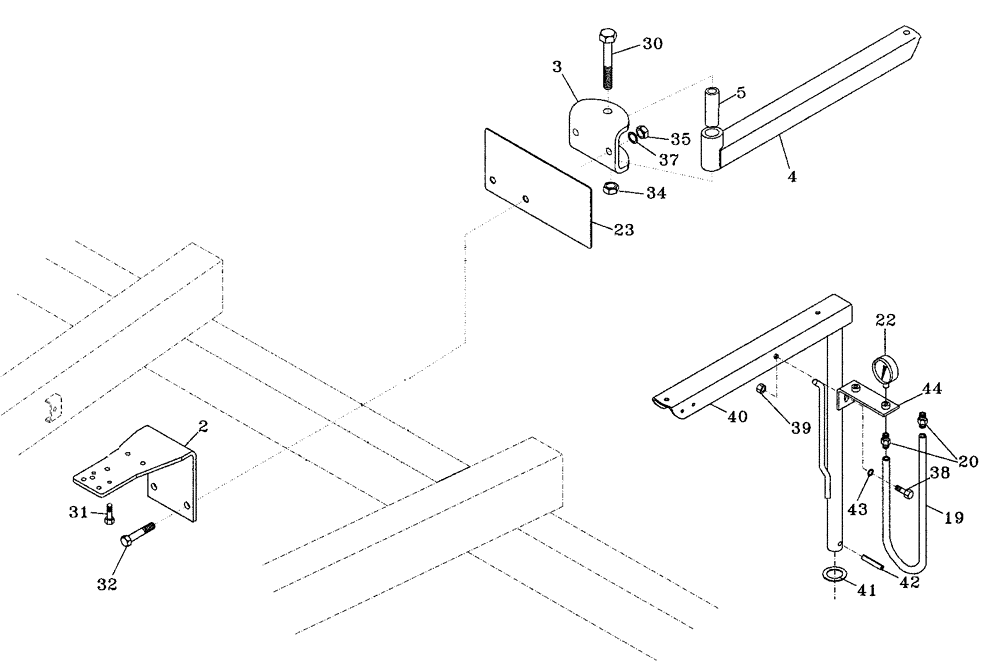

Запчасти Case IH NPX5300 (75.200.13) - SINGLE CONTINENTAL MOUNT WITH 2 MANIFOLDS (09) - CHASSIS/ATTACHMENTS

2

04660310

STAND

Regulator

1шт.

3

04660320

BAR ASSY.

1шт.

4

04660330

CHANNEL

Pivot Extension

1шт.

5

04660340

TUBE,0.81" ID, 1.25" OD

Pivot

1шт.

19

25630601

HOSE

3/8 x 166, AA

1шт.

19

25630801

HOSE

1/2 x 166, AA

1шт.

22

34599060

GAUGE

60 PSI, Dial

1шт.

23

04681850

SUPPORT

Decal, With Danger Sign

1шт.

24

18534368

DECAL

Danger, Not Shown

1шт.

30

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

31

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

32

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

34

280375

NUT,3/4"-10, GC

1шт.

35

425-1010

NUT,5/8"-11, G5

2шт.

37

492-11062

BEARING WASHER,5/8"

2шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

39

425-106

NUT,3/8"-16, Cl 5

1шт.

40

05302150

STAND

Hose

1шт.

41

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine

1шт.

42

438-32840

PIN,11.1mm OD x 63.5mm L

1шт.

43

495-21044

WASHER,3/8"

1шт.

44

04681830

BRACKET

Gauge

1шт.
