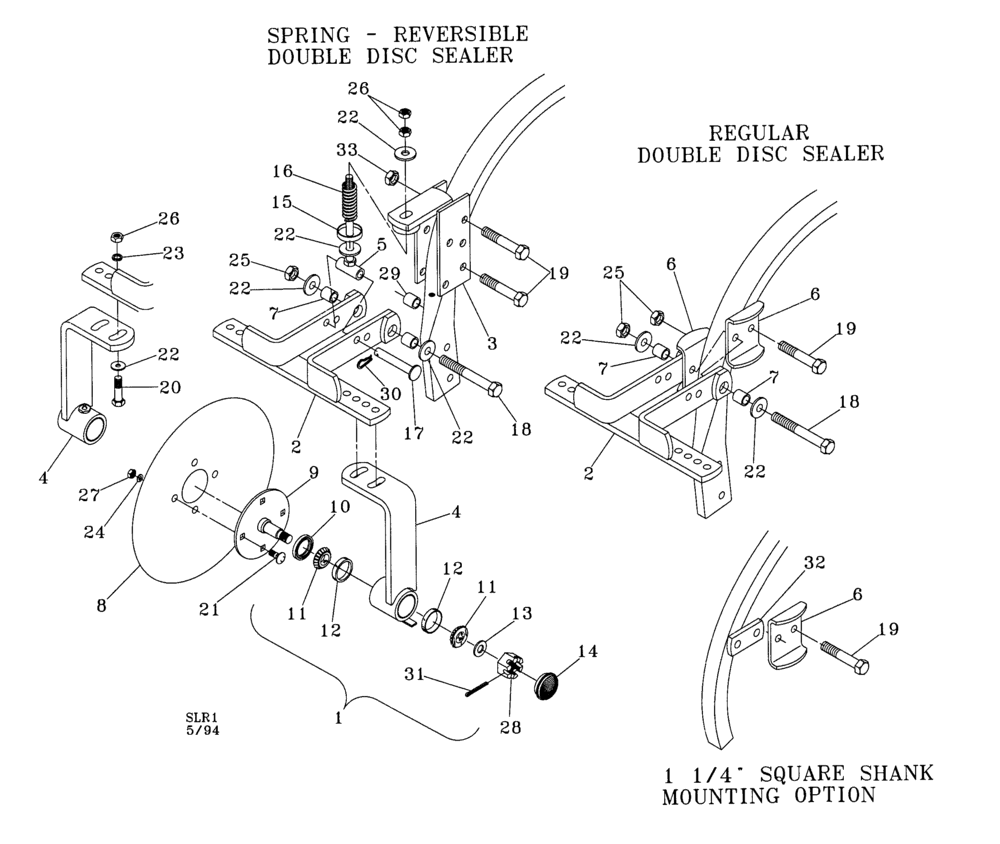

Запчасти Case IH NPX5300 (75.200.10) - 14 REVERSIBLE DOUBLE DISC AND REVERSIBLE SPRING DOUBLE DISC SEALER (09) - CHASSIS/ATTACHMENTS

02400100

PLOW DISC

Spring Sealer

1шт.

02330100

PLOW DISC

Regular

1шт.

1

02325200

PLOW DISC

Arm Sealer

1шт.

2

02335300

FRAME

Sealer

1шт.

3

02334000

BRACKET

1шт.

4

02325150

ARM

Sealer With Cups

1шт.

5

02333500

SUPPORT

1/2, Spring Pivot

1шт.

6

02335120

SPACER

Shank, 1 x 2 Shank

2шт.

6

02335140

SPACER

Shank, 1-1/4 Square Shank

2шт.

7

02323100

BUSHING

2шт.

8

443623A1

PLOW DISC

HPT BLADES 13" PLAIN 2.5 MM

2шт.

9

04666420

AXLE

Hub & Shaft

2шт.

10

21931000

SEAL

1.00, CR10035

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

3/4, Timken LM11949

4шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

12

651814R1

BEARING CUP

1.781 OD, Timken LM11910

4шт.

13

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

14

28400400

DUST CAP

2шт.

15

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

16

24120701

COMPRESSION SPRING

1шт.

17

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2 x 3-5/8, EL. Clevis

1шт.

18

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

21

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

22

495-81028

WASHER,21/32" x 1 1/2" x .240"

6шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

24

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

25

87333862

NUT

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

8шт.

27

425-106

NUT,3/8"-16, Cl 5

8шт.

28

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

29

02333410

TUBE,0.546" ID, 0.84" OD, 2" Length

Tube, Tru-Track'r Only

1шт.

30

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.

31

432-816

COTTER PIN,1/8" x 1"

1шт.

32

02321000

PLATE

Spacer, 1-1/4 Square Shank

2шт.

33

86992215

LOCK NUT,1/2"-13, GC

2шт.
