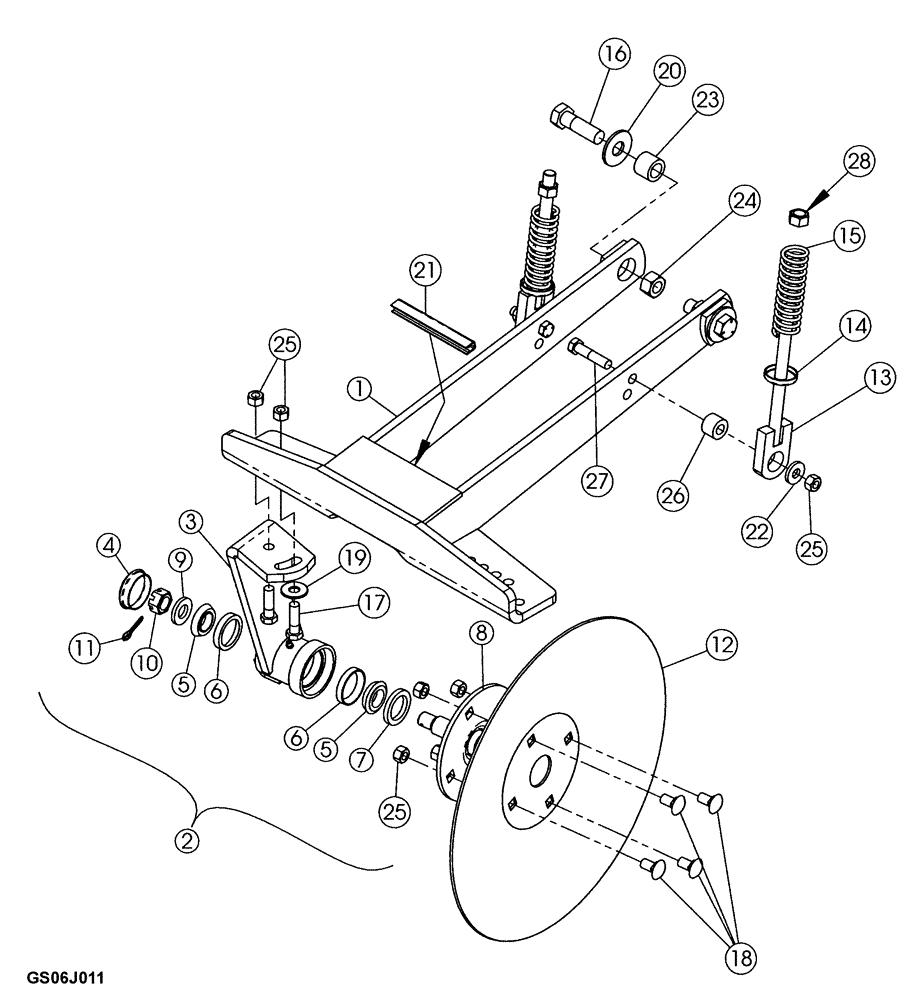

Запчасти Case IH NPX5300 (75.200.08) - BERM BUILDR 2007 MODEL YEAR AND AFTER USED ON CENTER SHANK ONLY (09) - CHASSIS/ATTACHMENTS

1

87543796

STRIPPER

Berm Build'r

1шт.

2

04691605

ARM ASSY.

Disc Mounting Arm, Rh

1шт.

2

04691610

ARM ASSY.

Disc Mounting Arm, Lh

1шт.

3

04691606

ARM

Disc Mount, Rh

1шт.

3

04691611

ARM

Disc Mount, Lh

1шт.

4

28420021

CAP

Grease

2шт.

5

463911R91

ROLLER BEARING,1" ID x 0.58"

Timken #L44643

4шт.

6

572564R1

BEARING CUP

Timken #L44610

4шт.

7

21931375

SEAL

1.37, CR#553468

2шт.

8

09103120

DISC

Disc

2шт.

9

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4 ID

2шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

11

432-816

COTTER PIN,1/8" x 1"

2шт.

12

84380555

DISK HARROW

HPT BLADES 18" PLAIN 3.0 MM

2шт.

13

87519753

EYEBOLT

2шт.

14

17506020

CUP WASHER,16.66mm ID x 44.45mm OD x 1.52mm Thk

2шт.

15

24120702

COMPRESSION SPRING

2шт.

16

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

18

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

19

495-21056

WASHER,1/2"

2шт.

20

495-21081

WASHER,3/4"

2шт.

21

04691609

TRIM PANEL

1шт.

22

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

2шт.

23

87397246

BUSHING,20.62mm ID x 31.75mm OD x 25.4mm L

Heat Treated

2шт.

24

280375

NUT,3/4"-10, GC

2шт.

25

86992215

LOCK NUT,1/2"-13, GC

14шт.

26

87534971

BUSHING,14.3mm ID x 28.58mm OD x 20.6mm L

Heat Treated

2шт.

27

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

28

85700693

NUT,5/8" - 11, Gr C

2шт.
