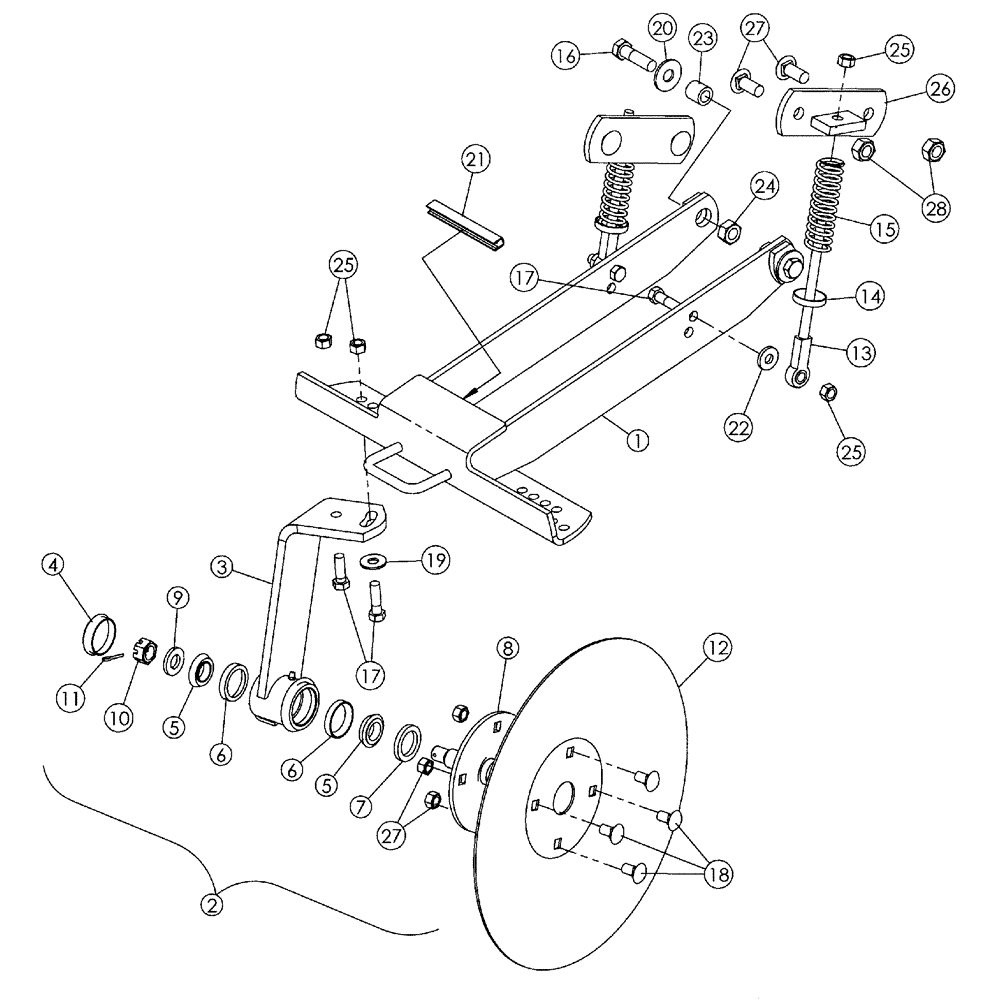

Запчасти Case IH NPX5300 (75.200.07) - BERM BUILDR 2006 MODEL YEAR AND PRIOR USED ON CENTER SHANK ONLY (09) - CHASSIS/ATTACHMENTS

1

04691600

FRAME

Berm Build'r

1шт.

2

04691605

ARM ASSY.

Disc Mounting Arm, Rh

1шт.

2

04691610

ARM ASSY.

Disc Mounting Arm, Lh

1шт.

3

04691606

ARM

Disc Mount, Rh

1шт.

3

04691611

ARM

Disc Mount, Lh

1шт.

4

28420021

CAP

Grease

2шт.

5

463911R91

ROLLER BEARING,1" ID x 0.58"

Timken L44643

4шт.

6

572564R1

BEARING CUP

Timken L44610

4шт.

7

21931375

SEAL

1.37 CR553468

2шт.

8

09103120

DISC

2шт.

9

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4 ID

2шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

11

432-816

COTTER PIN,1/8" x 1"

2шт.

12

413625A1

IMPELLER

Dull

2шт.

13

04691604

LINKAGE

1/2 Rod End

2шт.

14

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

2шт.

15

24117700

COMPRESSION SPRING

2шт.

16

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

18

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

19

495-21056

WASHER,1/2"

2шт.

20

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

21

04691609

TRIM PANEL

1шт.

22

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

2шт.

23

44006204

BUSHING,16.26mm ID x 25.4mm OD x 25.4mm L

2шт.

24

85700693

NUT,5/8" - 11, Gr C

2шт.

25

86992215

LOCK NUT,1/2"-13, GC

16шт.

26

04692226

STOP

Sealer Spring, Lh

1шт.

For Use Without Berm Condition'r

1шт.

27

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

4шт.

28

85700693

NUT,5/8" - 11, Gr C

4шт.
