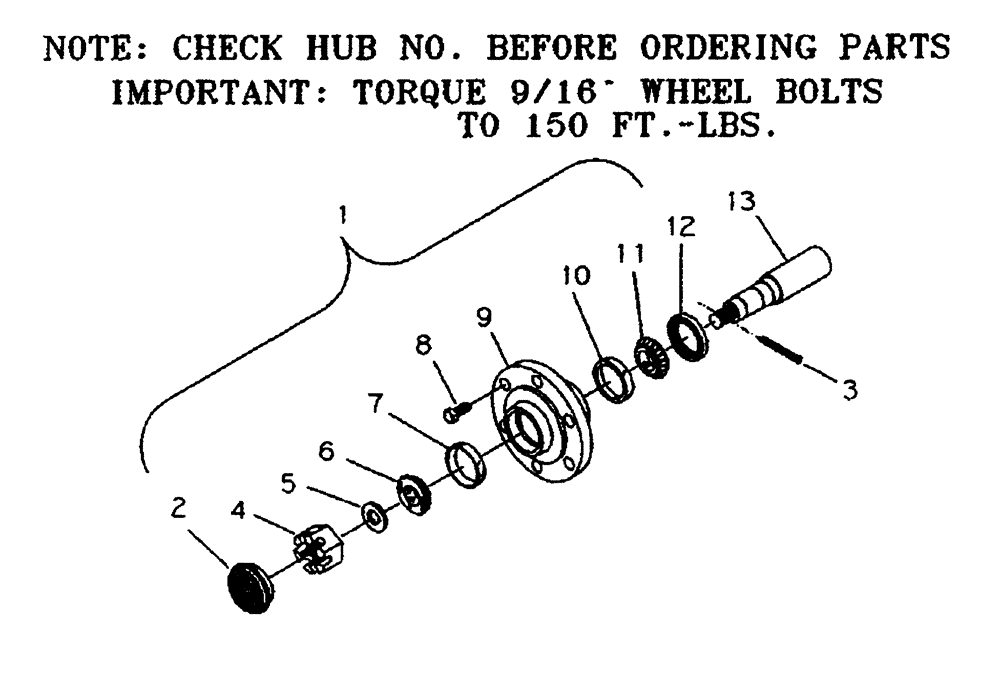

Запчасти Case IH NPX5300 (44.100.07) - 803 HUB AND SPINDLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

28180300

HUB ASSY.

803, 6 Bolt

1шт.

2

87449447

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.375 Bore, Timken 25877

1шт.

7

165964R1

BEARING CUP

2.875 OD, Timken 25821

1шт.

8

16409053

SPECIAL BOLT

9/16 x 1-1/8, NF, Lug

6шт.

9

NSS

NOT SOLD SEPARAT

803

1шт.

10

130503H

BEARING CUP

3.280 OD, Timken 25520

1шт.

11

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.800 Bore, Timken 25590

1шт.

12

491715R91

OIL SEAL

2 x 3.63, CR521430

1шт.

13

28380341

SPINDLE

16-15/16

1шт.
