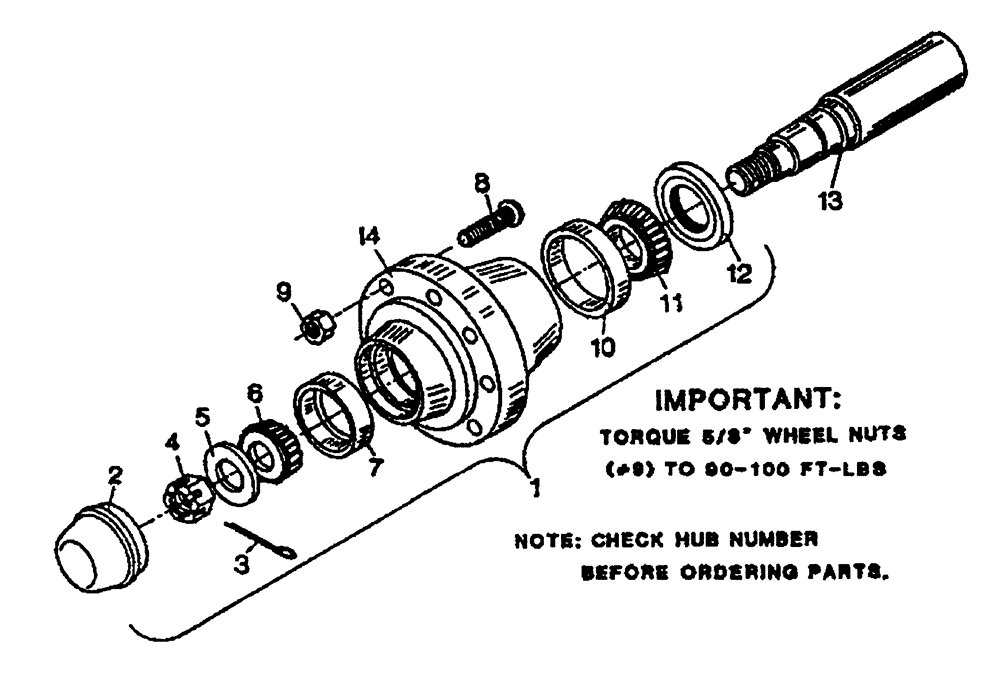

Запчасти Case IH NPX5300 (44.100.04) - 50-8 HUB AND SPINDLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

28050885

STUB AXLE/STEERING S

50-8 Hub & Spindle

1шт.

1

28150800

HUB ASSY.

50-8, 8 Bolt

1шт.

2

28460800

DUST CAP

1шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

4

425-1316

NUT,1"-14, G5

1шт.

5

95-11106

WASHER,1" x 2" x .134"

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62, Bore, Timken LM501349

1шт.

7

663558R1

BEARING CUP

2.89 OD, Timken LM501310

1шт.

8

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8 x 2-1/4, NF, Wheel

8шт.

9

554480R1

WHEEL NUT

5/8, NF, Wheel

8шт.

10

376463C1

BEARING CUP

3.22 OD, Timken JLM104910

1шт.

11

21872005

ROLLER BEARING,50 mm ID

2.00 Bore, Timken LM104948

1шт.

12

21932502

SEAL

2.50 x 3.25, Carbox CR53510

1шт.

13

28350805

STUB AXLE/STEERING S

1шт.
