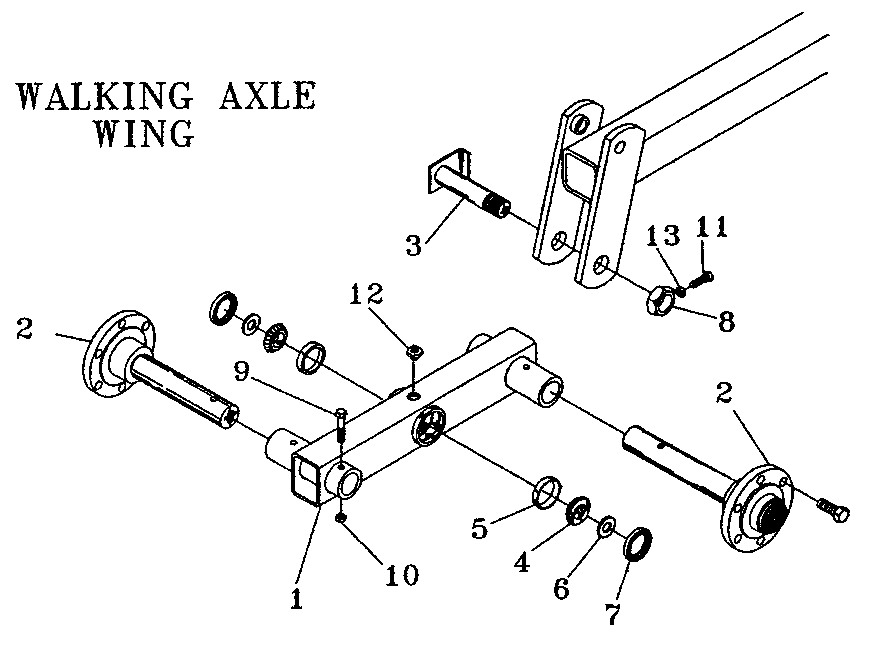

Запчасти Case IH NPX5300 (44.100.03) - WALKING AXLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

04683245

AXLE

Walking, Rh

1шт.

1

04683345

AXLE

Walking, Lh

1шт.

2

28078372

STUB AXLE/STEERING S

783 Hub & 2 Spindle

2шт.

3

04661850

PIN

Axle

1шт.

4

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

1.50, Bore, Timken LM29749

2шт.

5

478793R1

BEARING CUP

2.56 OD, Timken LM29710

2шт.

6

06201425

SPACER

2шт.

7

21932090

SEAL

2.094 Bore, CR20952

2шт.

8

14032409

NUT

1/2, Jam

1шт.

9

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

10

87333862

NUT

2шт.

11

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head

1шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.
