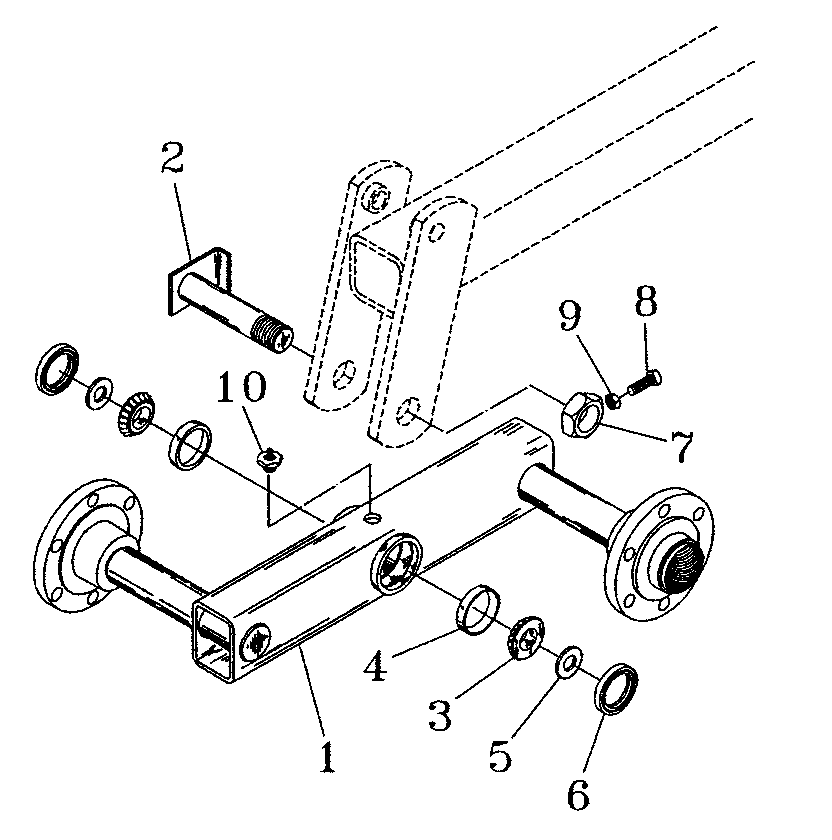

Запчасти Case IH NPX5300 (44.100.01) - NPX5300 WALKING AXLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

04662070

BAR ASSY.

Axle, Walking, 783 Hub, Rh

1шт.

04662170

BAR ASSY.

Axle, Walking, 783 Hub, Lh

1шт.

1

04662060

AXLE

Walking, 783 Hub, Rh

1шт.

1

04662160

AXLE

Walking, 783 Hub, Lh

1шт.

2

04661850

PIN

Axle

1шт.

3

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

1.50, Bore, Timken LM29749

2шт.

4

478793R1

BEARING CUP

2.56 OD, Timken LM29710

2шт.

5

06201420

SPACER

2шт.

6

21932090

SEAL

2.094 ID, CR20952

2шт.

7

14032408

JAM NUT

1-1/2, With Set Screw

1шт.

8

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head

1шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

1шт.
