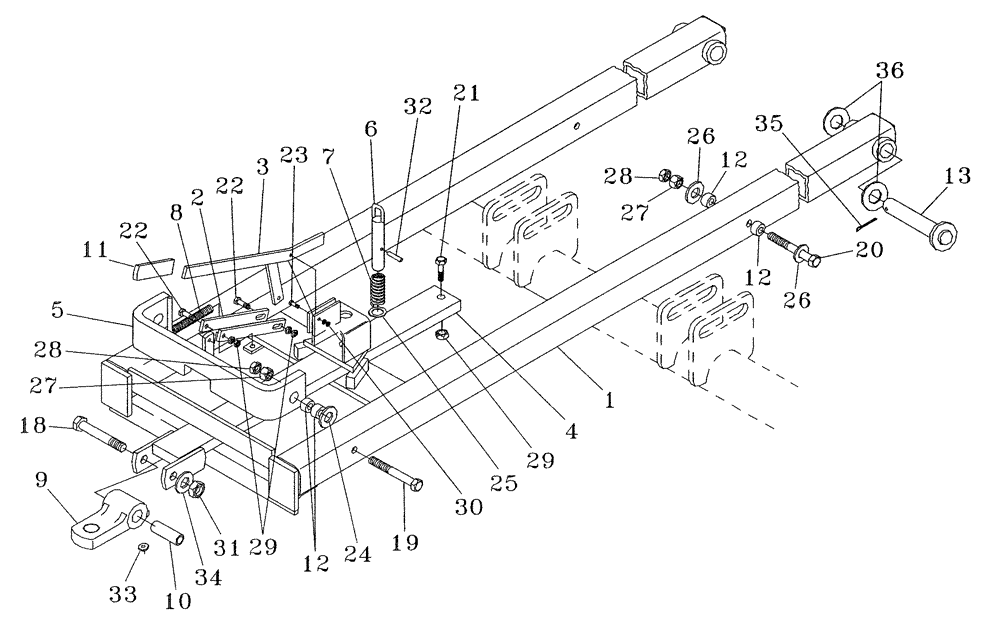

Запчасти Case IH NPX5300 (39.110.02) - REAR HITCH PARTS STANDARD (09) - CHASSIS/ATTACHMENTS

1

04664000

HITCH

Rear

1шт.

2

04664130

LINK ASSY.

2шт.

3

04664200

HANDLE

1шт.

4

04664400

BAR

Tow

1шт.

5

04664300

STOP

Draw Bar

1шт.

6

14816167

HITCH PIN

1шт.

7

24111200

SPRING

Compression

1шт.

8

24312000

COIL SPRING

Extension

1шт.

9

20092085

CLEVIS

Single

1шт.

10

44009370

SPACER

1шт.

11

30011100

HOLDER

Vinyl

1шт.

12

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

8шт.

13

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4 Diameter

2шт.

18

16901420

SPECIAL BOLT

7/8 x 5-1/2

1шт.

19

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

20

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

21

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

23

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

24

17618030

BUSHING

1-1/8, 18 Gauge, Machine

4шт.

25

17616020

WASHER

1, 14 Gauge, Machine

1шт.

26

495-81028

WASHER,21/32" x 1 1/2" x .240"

4шт.

27

425-1010

NUT,5/8"-11, G5

4шт.

28

425-1410

JAM NUT,Jam, 5/8"-11, G5

4шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

425-104

NUT,1/4"-20, Cl 5

2шт.

31

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8

1шт.

32

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1шт.

33

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

34

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8

1шт.

35

432-1632

COTTER PIN,1/4" x 2"

2шт.

36

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, 14 Gauge, Machine

1шт.

37

84580665

HITCH

Complete Assembly, Icludes All References

1шт.
