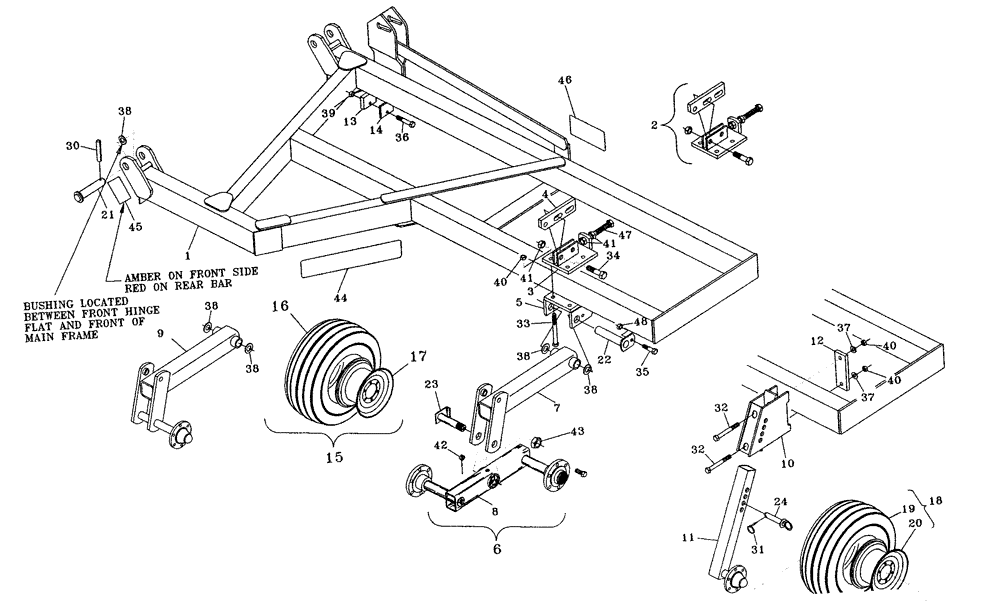

Запчасти Case IH NPX5300 (39.100.03) - NPX5300 WING PARTS (09) - CHASSIS/ATTACHMENTS

1

87338754

FRAME ASSY

72, Rh, 27 Foot Unit

1шт.

1

87338996

FRAME ASSY

72, Lh, 27 Foot Unit

1шт.

1

87339017

FRAME ASSY

96, Rh, 32 Foot Unit

1шт.

1

87339024

FRAME ASSY

96, Lh, 32 Foot Unit

1шт.

1

87339060

FRAME ASSY

124, Rh, 37 Foot Unit

1шт.

1

87339056

FRAME ASSY

124, Lh, 37 Foot Unit

1шт.

2

04661410

MOUNTING PARTS

Top

2шт.

3

04661420

MOUNTING PARTS

Top

2шт.

4

04661451

LUG

Cylinder, Adjustable

2шт.

5

04661430

MOUNTING PARTS

Spindle

2шт.

6

04661600

WHEEL,Assy, Gauge

Gauge, Tandem, 888 Hub, Rh

1шт.

6

04661700

WHEEL ASSY

Gauge, Tandem, 888 Hub, Lh

1шт.

7

04661610

ARM

Spindle, Tandem

2шт.

8

04662070

BAR ASSY.

Axle, Walking, 783 Hub, Rh, (1997 & Prior Used 888 Hub)

1шт.

8

04662170

BAR ASSY.

Axle, Walking, 783 Hub, Lh, (1997 & Prior Productioln Used 888 Hub)

1шт.

9

04661440

WHEEL

Gauge, Single, 783 Hub, Rh

1шт.

9

04661540

WHEEL

Gauge, Single, 783 Hub, Lh

1шт.

10

04661320

GAUGE

Mounting, Bracket

2шт.

11

02380400

BAR ASSY.

2шт.

12

09576610

LINKAGE

Gauge Wheel

2шт.

13

04662230

BLOCK

Wing Stop, Pin Adjust Only

2шт.

14

04662231

SHIM

Wing Stop, Pin Adjust Only

1шт.

15

10008256

LAND WHEEL

9.5L x 15, 6 Ply

1шт.

16

NSS

NOT SOLD SEPARAT

9.5L x 15, 6 Ply

1шт.

17

10108254

WHEEL

8 x 15, 6 Hole

1шт.

18

87461162

WHEEL ASSY.

8.5L x 14, 6 Ply

2шт.

19

NSS

NOT SOLD SEPARAT

8.5L x 14, 6 Ply

2шт.

20

87461169

WHEEL ASSY.

14 x 8, 6 Hole

2шт.

21

14826552

PIN

Hinge

4шт.

22

14820640

SPECIAL PIN

1-5/8

2шт.

23

04661850

PIN

Axle

2шт.

24

14816348

PIN,25.4mm OD x 133.35mm L

1 x 4-1/4

2шт.

30

438-32840

PIN,11.1mm OD x 63.5mm L

4шт.

31

A30338

PIN

1/4 x 1-3/4, Klik

2шт.

32

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

33

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

8шт.

34

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

2шт.

35

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

36

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

37

492-11075

LOCK WASHER,3/4"

4шт.

38

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8, 14 gauge, Machine

2шт.

39

425-108

NUT,1/2" - 13, Gr 5

2шт.

40

425-1012

NUT,3/4"-10, G5

12шт.

41

425-1014

NUT,7/8"-9, G5

6шт.

42

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

43

14032408

JAM NUT

1-1/2, Jam With Set Screw

2шт.

44

87666428

DECAL

NPX5300, Rh

1шт.

44

87666427

DECAL

NPX5300, Lh

1шт.

45

18534243

REFLECTOR

Amber

1шт.

45

18534244

REFLECTOR

Red

1шт.

46

18534261

DECAL

DMI

2шт.

47

16901411

BOLT

7/8 x 4

2шт.

48

425-1010

NUT,5/8"-11, G5

2шт.
