(35.100.14) - 4 X 36 WING FOLD CYLINDER

Запчасти Case IH NPX5300 (35.100.14) - 4 X 36 WING FOLD CYLINDER (08) - HYDRAULICS

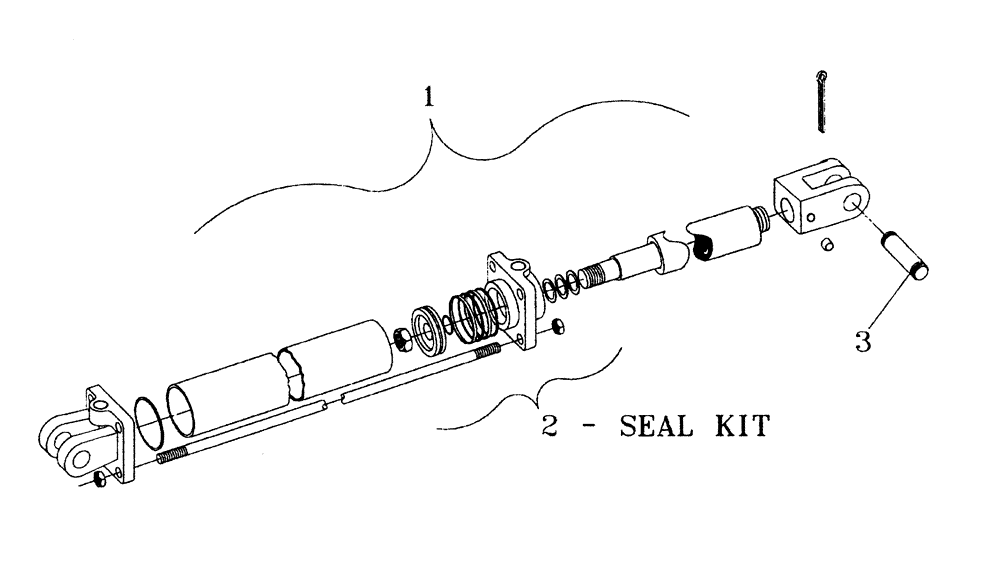

Схема запчастей Case IH NPX5300 - (35.100.14) - 4 X 36 WING FOLD CYLINDER (08) - HYDRAULICS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36, Monarch

1шт.

1

25340362R

REMAN-HYD CYLINDER

NPX5300 - CASE IH APPLICATOR EQUIPMENT - PULL TYPE

1шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

1шт.

2

25890100

KIT

1 Cylinder

1шт.

3

25834024

SEAL KIT

For Monarch

1шт.

3

25834023

SEAL KIT

For Iowa Industries

1шт.

Выбрано товаров: 6
