Запчасти Case IH NPX5300 (35.100.02) - NPX5300 HYDRAULICS WITH HYDRAULIC GAUGE WHEELS (08) - HYDRAULICS

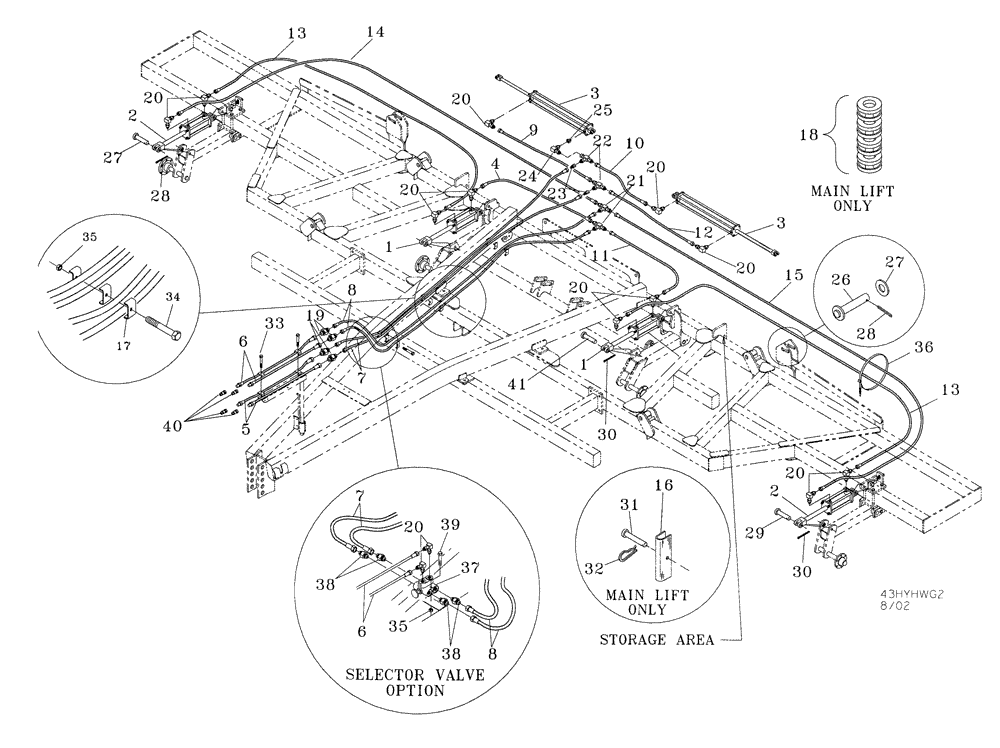

Схема запчастей Case IH NPX5300 - (35.100.02) - NPX5300 HYDRAULICS WITH HYDRAULIC GAUGE WHEELS (08) - HYDRAULICS
12
20
18
2
30
32
21
37
5
35
6
20
7
3
31
23
38
22
33
9
38
13
27
20
20
35
15
3
36
28
2
11
8
28
1
17
6
19
24
13
41
20
10
1
14
4
20
29
27
26
20
39
20
25
30
40
7
34
16

Артикул

Название

Примечание

Количество

1

87394803

HYDRAULIC CYLINDER

3-1/2 x 10, Rephase

2шт.

87394803R

REMAN-HYD CYLINDER

NPX5300

2шт.

87394803C

CORE-HYD CYLINDER

Return Number

1шт.

2

87394795

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/4 x 10, Rephase

2шт.

87394795R

REMAN-HYD CYLINDER

NPX5300 PULL TYPE

2шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

3

25335361

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

3-1/2 x 36

2шт.

3

25335361R

REMAN-HYD CYLINDER

NPX5300 CASE IH APPLICATOR EQUIPMENT - PULL TYPE, 3-1/2 X 36

2шт.

3

25335361C

CORE-HYD CYLINDER

Return Number

2шт.

4

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

5

25610645

HYDRAULIC HOSE

3/8 x 80

2шт.

6

25610855

HYDRAULIC HOSE

1/2 x 100

2шт.

7

25600633

HYDRAULIC HOSE,0.38" ID x 165.00", SAE 100R17

2шт.

8

134216A1

HYDRAULIC HOSE,12.7mm ID x 4190mm L

1/2 x 165

2шт.

9

25600634

HYDRAULIC HOSE,0.38" ID x 37.00", SAE 100R17

1шт.

10

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

11

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

1шт.

12

25600704

HYDRAULIC HOSE,9.53mm ID x 2463.8mm L, SAE 100R17

1шт.

13

25600667

HYDRAULIC HOSE,0.38" ID x 187.00", SAE 100R17

2шт.

14

25600695

HYDRAULIC HOSE,0.38" ID x 220.00", SAE 100R17

1шт.

15

25600707

HYDRAULIC HOSE,0.38" ID x 246.00", SAE 100R17

1шт.

16

04632700

STAY

9-3/4

2шт.

17

06200125

HOSE CLAMP

15шт.

18

25800010

CYLINDER

1-1/4

2шт.

19

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

11шт.

Selector Valve Items (PO466083)

1шт.

21

218-594

TEE,3/4"-16, 37 Degree

2шт.

22

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

23

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

24

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

25

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

1шт.

26

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4-1/4, E.L.Cleis

2шт.

27

495-21106

WASHER,1"

2шт.

28

432-1632

COTTER PIN,1/4" x 2"

2шт.

29

87430410

SPECIAL PIN

1 x 5.54, E.L. Clevis

2шт.

30

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

31

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, E.L. Clevis

2шт.

32

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

33

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

34

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

35

425-106

NUT,3/8"-16, Cl 5

5шт.

Selector Valve Items (PO466083)

1шт.

36

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

14шт.

37

25401000

VALVE

Selector

1шт.

Selector Valve Items (PO466083)

1шт.

38

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

4шт.

Selector Valve Items (PO466083)

1шт.

39

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

Selector Valve Items (PO466083)

1шт.

40

25705041

COUPLING

3/4 SAEF, Male, ISO

4шт.

41

14891672

PIN

1 x 9, Clevis, For 4 x 6 Tube

2шт.

41

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 x 5.81, Clevis, For 4 x 4 Tube

2шт.

Выбрано товаров: 53
