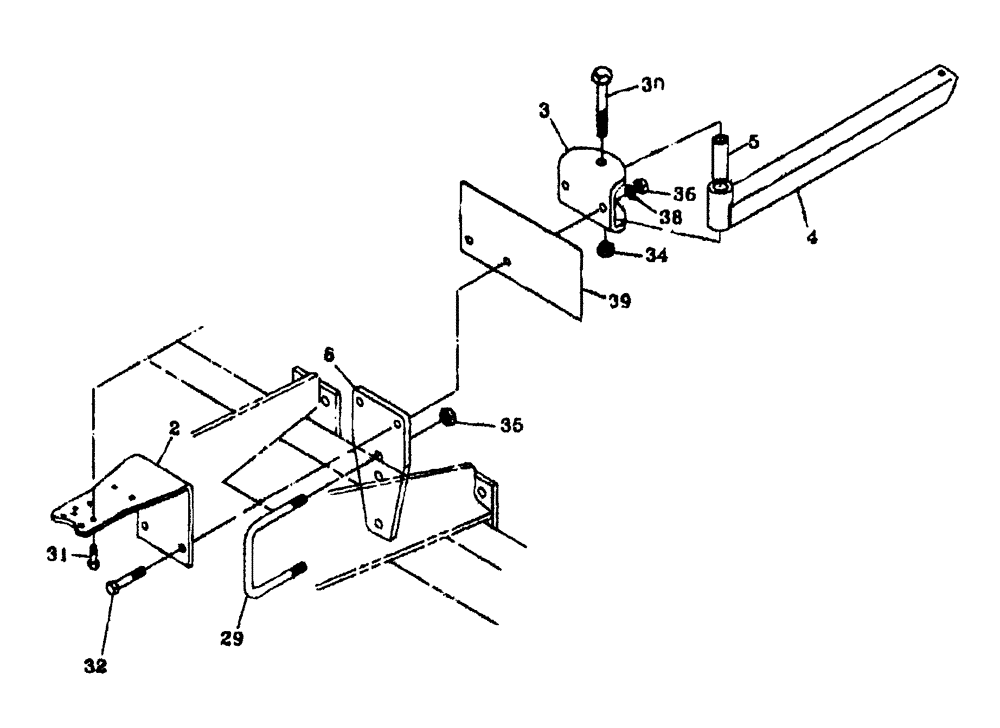

Запчасти Case IH NPX5300 (75.200.15) - SINGLE CONTINENTAL MOUNT WITH 2 MANIFOLDS (75) - SOIL PREPARATION

2

04660310

STAND

Regulator

1шт.

3

04660320

BAR ASSY.

1шт.

4

04660330

CHANNEL

Pivot Extension

1шт.

5

04660340

TUBE,0.81" ID, 1.25" OD

Pivot

1шт.

6

02391118

PLATE

Stand, Regulator

1шт.

29

87427186

U-BOLT

BOLT "U" 3/4 x 4 x 6

1шт.

30

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

32

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

34

280375

NUT,3/4"-10, GC

1шт.

35

425-1012

NUT,3/4"-10, G5

2шт.

36

425-1010

NUT,5/8"-11, G5

2шт.

38

492-11062

BEARING WASHER,5/8"

2шт.

39

04681850

SUPPORT

Decal, With Danger Sign

1шт.

40

18534368

DECAL

Danger, Not Shown

1шт.
