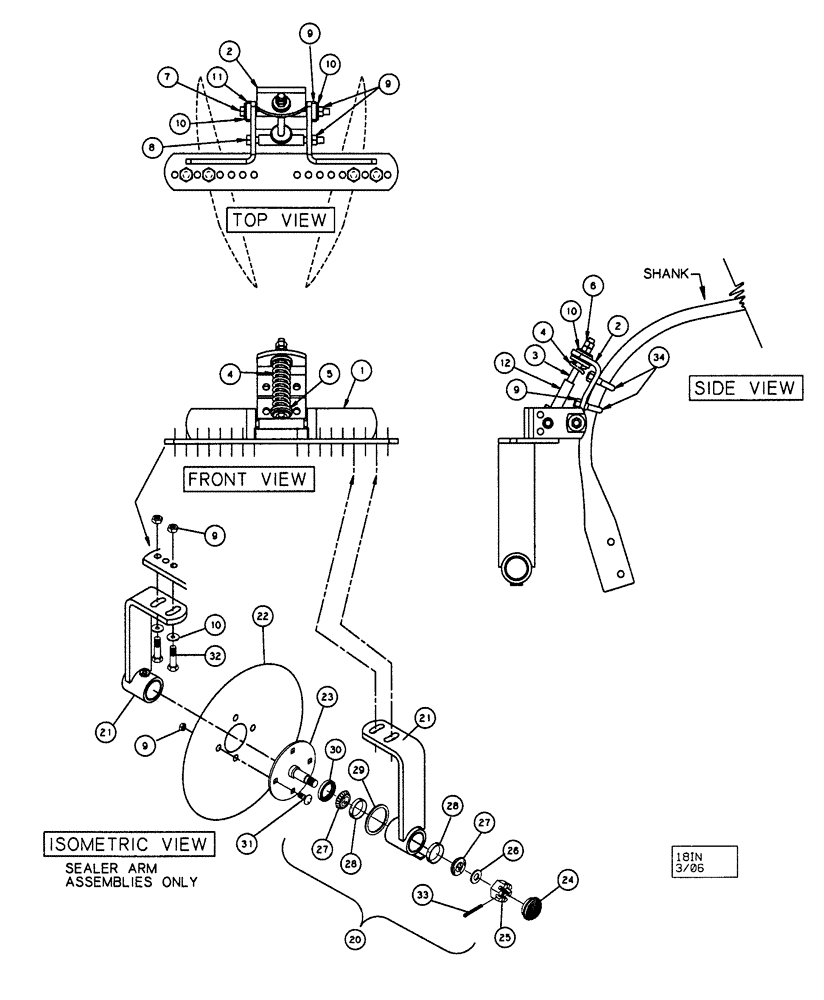

Запчасти Case IH NPX5300 (75.200.12) - 18 DISC SEALER (75) - SOIL PREPARATION

1

02337216

FRAME

Sealer

1шт.

2

02337225

MOUNTING PARTS

Sealer

1шт.

3

02337217

BOLT

Pivot

1шт.

4

24120701

COMPRESSION SPRING

1шт.

5

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

8

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

9

86992215

LOCK NUT,1/2"-13, GC

18шт.

10

495-21056

WASHER,1/2"

6шт.

11

02323001

BUSHING

2шт.

12

02337218

TUBE

1шт.

20

02337230

ARM ASSY.

Sealer Arm

1шт.

21

02337233

ARM

Sealer With Cups

1шт.

22

84180366

DISK HARROW

DISK, MC,FLT CNTR 460X63.5X3

2шт.

22

84380555

DISK HARROW

HPT BLADES 18" PLAIN 3.0 MM

2шт.

23

09103120

DISC

Spindle

2шт.

24

28420021

CAP

Grease

2шт.

25

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

26

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4, Special

2шт.

27

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00, Timken L44643

4шт.

28

572564R1

BEARING CUP

1.980 OD, Timken L44610

4шт.

29

238-5332

O-RING,0.21" Thk x 2.35" ID, -332, Cl 5, 75 Duro

2шт.

30

21931375

SEAL

1.375, CR533468

2шт.

31

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

32

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

33

432-816

COTTER PIN,1/8" x 1"

2шт.

34

16308051

U-BOLT

1/2 x 3 x 2-1/2

2шт.
