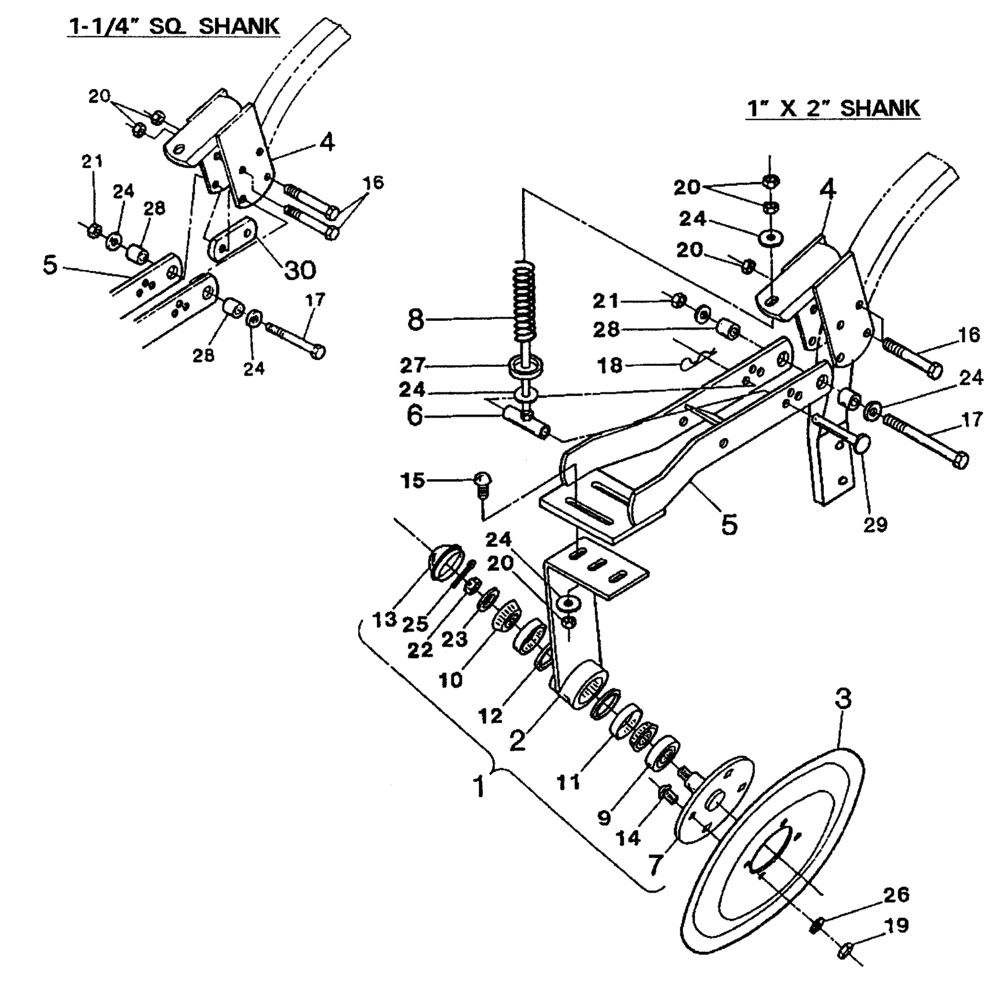

Запчасти Case IH NPX5300 (75.200.10) - UNI-SEALR (75) - SOIL PREPARATION

02333000

PLOW DISC

Uni-seal'r

1шт.

1

02333120

BEARING HOUSING

Bearing Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Replaced by Item 1

1шт.

3

443622A1

PLOW DISC

Uni-seal'r

1шт.

4

02333300

BRACKET

1шт.

5

02333200

FRAME

1шт.

6

02333500

SUPPORT

1/2, Pivot

1шт.

7

04666420

AXLE

Hub & Spindle

1шт.

8

24117700

COMPRESSION SPRING

1шт.

9

21931000

SEAL

1, CR10035

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

Timken LM11949, .75 Bore

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

651814R1

BEARING CUP

1.78, Timken LM11910

2шт.

12

100-21175

SNAP RING,1.75", Int, #175

2шт.

13

28400400

DUST CAP

1шт.

14

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

15

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

16

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

17

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

425-108

NUT,1/2" - 13, Gr 5

5шт.

21

87333862

NUT

1шт.

22

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

23

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

24

495-21056

WASHER,1/2"

6шт.

25

432-816

COTTER PIN,1/8" x 1"

1шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

27

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

28

02323001

BUSHING

2шт.

29

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2 x 3-5/8

1шт.

30

02333350

PLATE

Spacer, 1-1/4 Shank

2шт.
