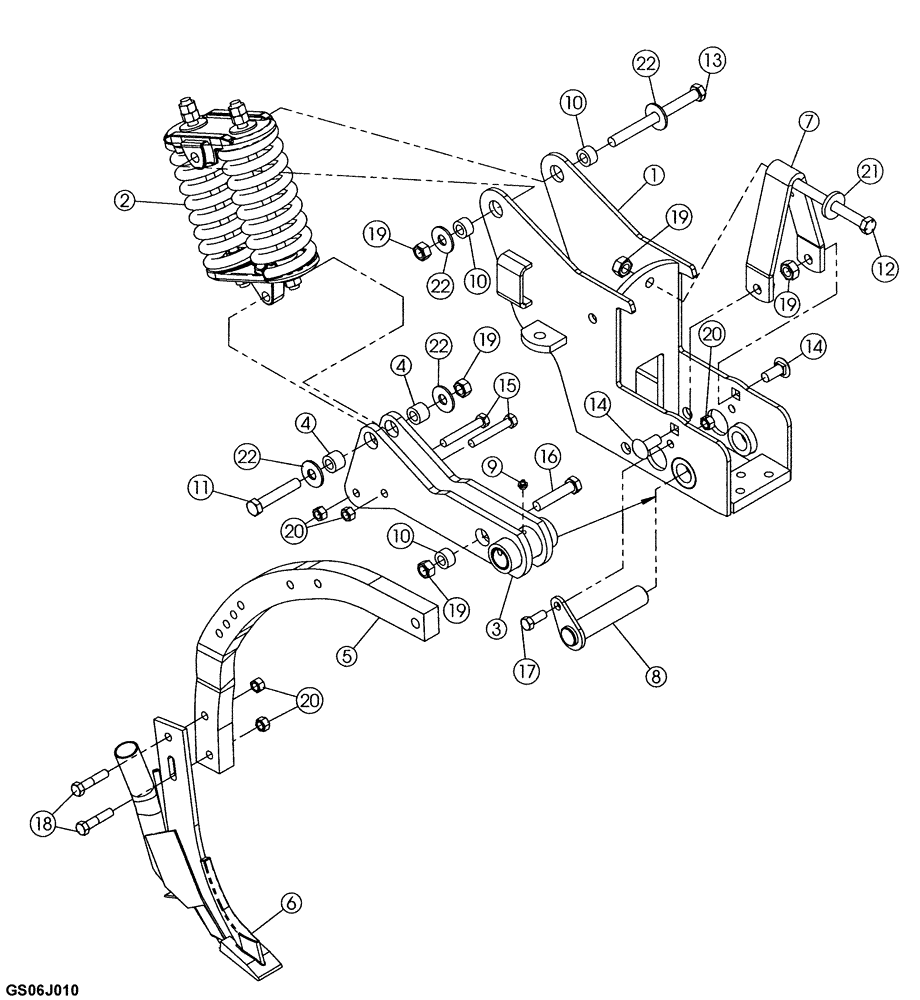

Запчасти Case IH NPX5300 (75.200.06) - HCS SHANK ASSEMBLY 2007 MODELS AND AFTER (75) - SOIL PREPARATION

87379645

SHANK

HCS Shank, Does Not Include Knife

1шт.

1

87532483

MOUNTING PARTS

Shank, Weldment

1шт.

2

87532498

SPRING KIT

HCS Spring Pack Assembly

1шт.

3

87532493

PIVOT

Shank Weldment

1шт.

4

87515446

BUSHING

Heat Treated

1шт.

5

33020031

SHANK

Formed

1шт.

6

33607130

KNIFE

Strip Till, Dry & NH3 Combination

1шт.

6

33607135

KNIFE

Strip-Till, NH3 Only

1шт.

7

04691717

STOP

Flip Up

1шт.

8

14820475

TOWBAR PIN

1-1/4, Flag

1шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

10

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

3шт.

11

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

12

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

13

16901024

BOLT

5/8 x 11 x 7-1/4, Gd 5

1шт.

14

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

2шт.

15

16908128

BOLT

1/2 x 3, A-325

2шт.

16

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

19

85700693

NUT,5/8" - 11, Gr C

5шт.

20

86992215

LOCK NUT,1/2"-13, GC

5шт.

21

495-21081

WASHER,3/4"

1шт.

22

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.
