(55.404.02) - PULL HITCH WARNING AND TAILLIGHT KIT

Запчасти Case IH NPX5300 (55.404.02) - PULL HITCH WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS

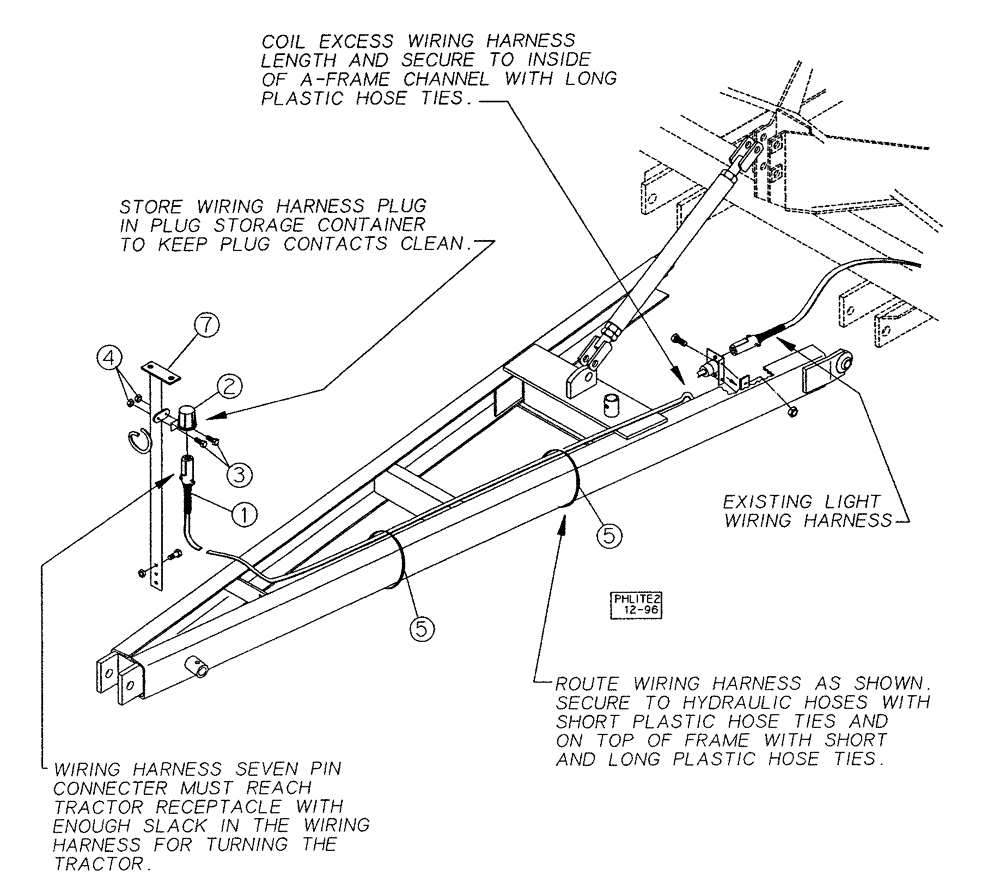

Схема запчастей Case IH NPX5300 - (55.404.02) - PULL HITCH WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS
2
1
4
5
5
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87446765

WIRE HARNESS

Extension

1шт.

2

27601214

HOLDER

Plug Storage

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

86992211

NUT

1/4

2шт.

5

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 30, Plastic

1шт.

6

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20

1шт.

7

04631200

SUPPORT

Hose, Not Included With Light Kit

1шт.
