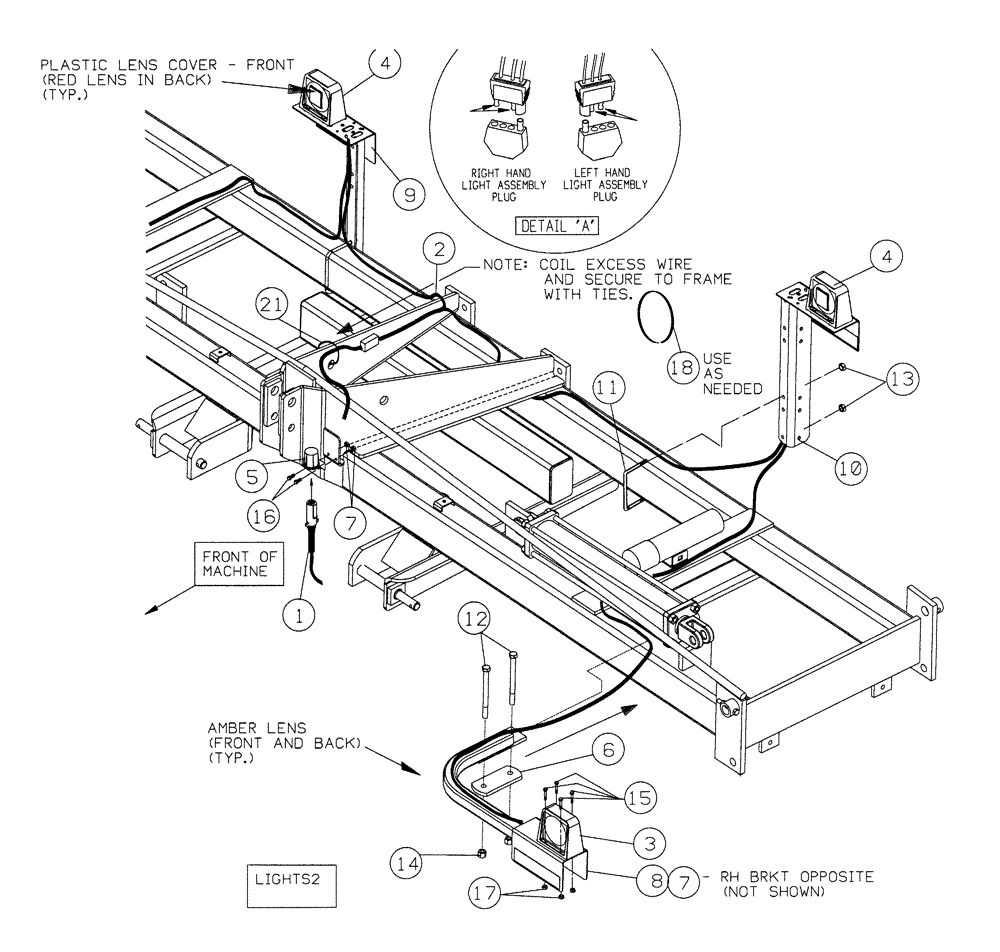

Запчасти Case IH NPX5300 (55.404.01) - WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS

1

27602314

WIRE HARNESS

Front

1шт.

2

27602226

WIRE HARNESS

Rear

1шт.

3

27602201

LIGHT ASSY.

Single, Amber

2шт.

4

27602202

LIGHT ASSY.

Sngle, Red

2шт.

5

27601214

HOLDER

Storage, Plug

1шт.

6

87419492

MOUNTING PLATE

2шт.

7

87413845

BRACKET

Light, Front, Rh

1шт.

8

87413808

BRACKET

Light, Front, Lh

1шт.

9

87328897

BRACKET

Light, Rear, Rh

1шт.

10

87328898

BRACKET

Light, Rear, Lh

1шт.

11

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8 x 4.9 x 6.06

2шт.

12

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

2шт.

13

86992213

NUT

3/8

4шт.

14

85700693

NUT,5/8" - 11, Gr C

4шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

86992211

NUT

1/4

18шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

19

27601215

LENS

Replacement, Amber, Not Shown

1шт.

20

27601216

LENS

Replacement, Red, Not Shown

1шт.

21

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.
