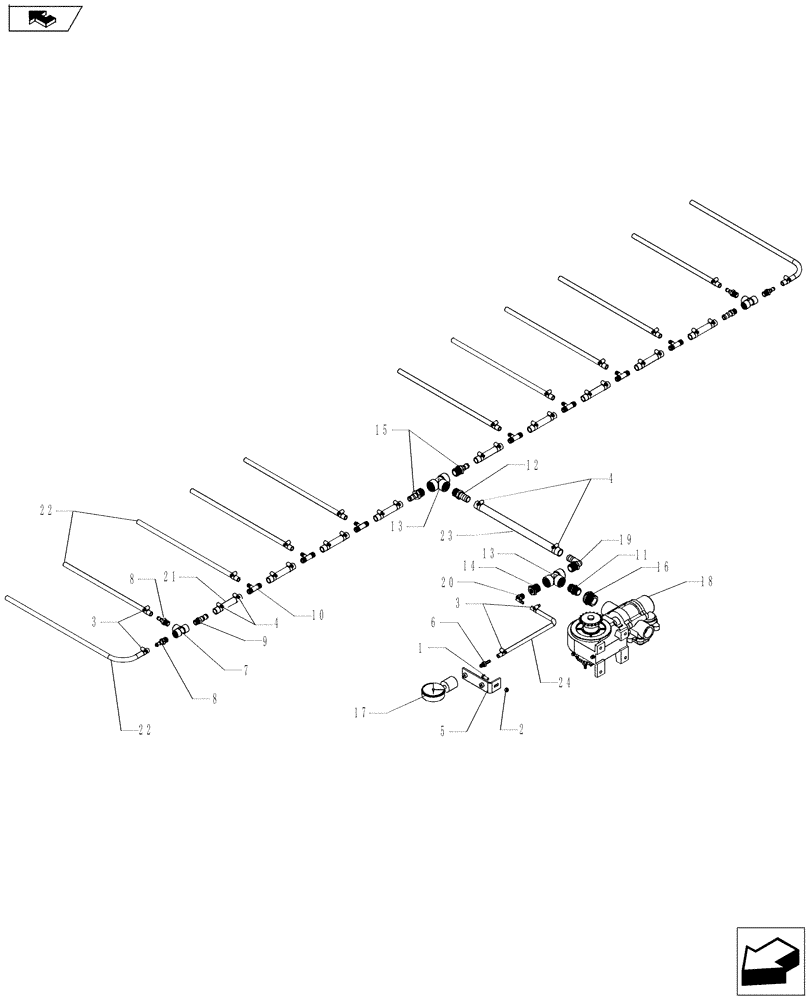

Запчасти Case IH NPX2800 (75.200.08[02]) - HOSE ASSEMBLY SINGLE PISTION PUMP 2010 AND AFTER (75) - SOIL PREPARATION

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

2

425-106

NUT,3/8"-16, Cl 5

1шт.

3

244358

HOSE CLIP,0.44" - 0.78"

13шт.

4

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

20шт.

5

04681830

BRACKET

1шт.

6

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

7

34304002

TEE,1/2" Poly Tee

1/2" NPT Poly

2шт.

8

34304032

PIPE FITTING

1/2" NPT x 3/4" Hose Barb

4шт.

9

34304061

PIPE FITTING

1/2" NPT x 3/4" Hose Barb

2шт.

10

34306051

TEE

3/4" x 1/2" Barb

7шт.

11

34308000

NIPPLE,1" NPT x 1" NPT, Poly

1" Poly Short Nipple

1шт.

12

34308001

PIPE FITTING,1" NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb

1шт.

13

34308005

TEE,1" NPT x 1" NPT x 1" NPT, Poly

1" NPT Poly

2шт.

14

34308041

BUSHING,1" NPT x 1/2" NPT

1" NPT x 1/2" NPT Reducer

1шт.

15

34308060

PIPE FITTING,1" NPT x 3/4" Hose Barb, Poly

1" NPTM x 3/4" Hose Barb

2шт.

16

34312004

REDUCER FITTING

1-1/2" x 1 Pipe Reducer

1шт.

17

34599015

GAUGE ASSY.,160 PSI

0-160 PSI

1шт.

18

84315373

PUMP

JB Single Piston NGP 7055

1шт.

19

84325034

FITTING,1" - 11.5 NPT x 1" Hose Barb

1" MPT x 1" HB, 90 Deg

1шт.

20

84346916

FITTING,1/2" Male Thread x 3/8" 90 Degree Hose Barb

1/2" Male NPT x 3/8" HB, 90 Deg.

1шт.

21

25661225

HOSE

3/4" x 25' Bulk

1шт.

22

25630805

HOSE

1/2" x 60' Bulk

1шт.

23

25661604

HOSE,1" ID x 48" L, EPDM

1" x 4' Bulk

1шт.

24

25630607

HOSE

3/8" x 25' Bulk

1шт.
