Запчасти Case IH NPX2800 (75.200.04[02]) - COULTER KNIFE ASSEMBLY 2010 AND AFTER (75) - SOIL PREPARATION

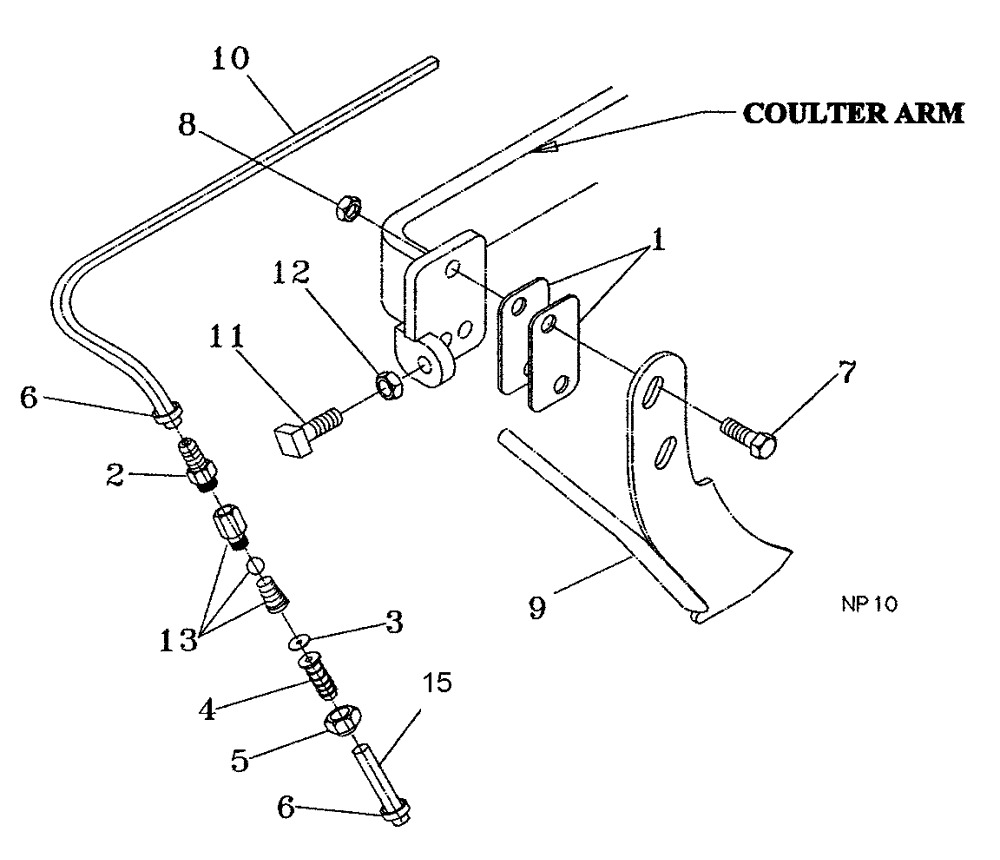

Схема запчастей Case IH NPX2800 - (75.200.04[02]) - COULTER KNIFE ASSEMBLY 2010 AND AFTER (75) - SOIL PREPARATION
2
8
1
4
7
10
11
9
3
5
6
12
15
6
13

Артикул

Название

Примечание

Количество

1

05310110

SHIM

16 Gauge

1шт.

1

05310120

SHIM

10 Gauge

1шт.

2

15040256

FITTING,1/4" - 18 NPT x 1/2" Hose Barb, SST

1/4" x 1/2", NPT, Hose

1шт.

3

34600020

ORIFICE

Plate - 51

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600021

ORIFICE

Plate - 72

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600022

ORIFICE

Plate - 98

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600023

ORIFICE

Plate - 125

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600024

ORIFICE

Plate - 86

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

4

34600007

PIPE FITTING

Barb - 3/8" ID, Hose

1шт.

5

34600031

CAP

Nozzle

1шт.

6

244358

HOSE CLIP,0.44" - 0.78"

1шт.

7

16910161

BOLT

5/8" x 2", Stainless

2шт.

8

14091002

NUT

5/8", Stainless

2шт.

9

87437978

KNIFE

With 3/8" Tube

1шт.

10

25630601

HOSE

3/8" X 166'

1шт.

10

25630805

HOSE

1/2" X 60'

1шт.

11

16812084

SET SCREW,3/4" - 10 x 2"

Set, 3/4" x 2", Square Head

1шт.

12

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

13

34600030

CHECK VALVE

1шт.

14

34600019

NOZZLE HOLDER

T-J, With Hose Barb

1шт.

14

05310023

KIT

Check Valve And Orfice

1шт.

15

25630805

HOSE

Bulk 3/8"

1шт.

Выбрано товаров: 27
