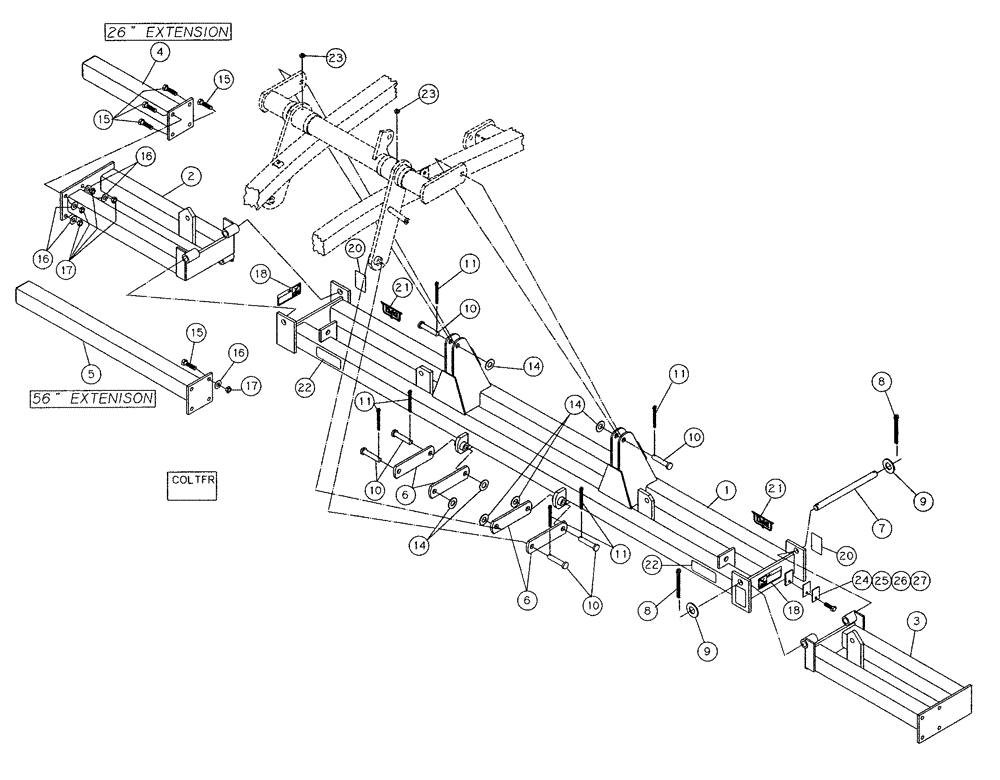

Запчасти Case IH NPX2800 (75.200.02) - COULTER BAR (75) - SOIL PREPARATION

1

87335449

FRAME ASSY

Coulter Main

1шт.

2

87336814

FRAME ASSY

Wing Coulter, RH

1шт.

3

87336817

FRAME ASSY

Wing Coulter, LH

1шт.

4

87338191

EXTENSION

26", Coulter

2шт.

5

87338192

EXTENSION

56", Coulter

2шт.

6

05302140

LINKAGE

4шт.

7

14892089

PIN

1-1/4", Hinge

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

9

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", Machine

4шт.

10

14816382

SMALL PIN

1" x 3-3/4", Clevis

6шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

12

14816395

CLEVIS

Pin - 1" x 4-7/8"

2шт.

13

1978738C1

HAIR PIN COTTER

3/16" x 3"

2шт.

14

495-21106

WASHER,1"

Standard

8шт.

15

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

16

492-11075

LOCK WASHER,3/4"

4шт.

17

425-1012

NUT,3/4"-10, G5

4шт.

18

18534227

DANGER DECAL

2шт.

19

18534243

REFLECTOR

Amber

1шт.

20

18534244

REFLECTOR

Red

2шт.

21

18534261

DECAL

DMI

2шт.

22

18534302

DECAL

2800

2шт.

23

87019498

FITTING

1/8" Pipe Spcl Taper Drive

2шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

24

04626140

SHIM

1/4 Thick

2шт.

25

04626130

SHIM

(.113 Thick)

2шт.

26

04626120

SHIM

(.076 Thick)

4шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.
