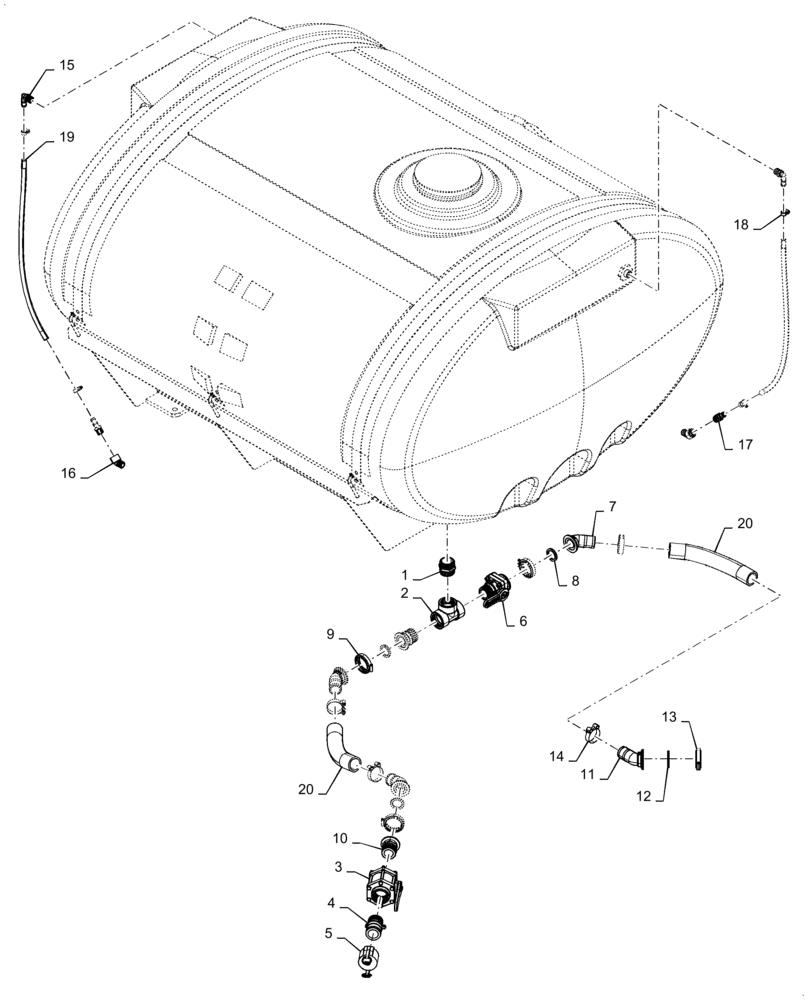

Запчасти Case IH NPX2800 (63.100.AA[20]) - TANK FITTINGS HYDRAULIC PUMP 1000 GALLON (63) - CHEMICAL APPLICATORS

1

34316006

HYD CONNECTOR

Poly Nipple

1шт.

2

34316005

TEE

2" Poly Tee

1шт.

3

34216001

VALVE,2" Full Port Valve

2"

1шт.

4

34416002

PUSH-PULL COUPLING

2"

1шт.

5

34416022

DUST CAP,2" Cap

2"

1шт.

6

401874A1

VALVE,2" Flange x 2" Male NPT

2"

1шт.

7

47721228

ELBOW

45 Deg

3шт.

8

BN303204

GASKET,1-1/2" EPDM Gasket

3шт.

9

BN303199

CLAMP,2" Flange

2"

3шт.

10

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2"

2шт.

11

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

45 Deg

1шт.

12

BN313772

GASKET,2" Full Port, EPDM

2.2"

1шт.

13

BN313773

CLAMP,2" Full Port

2" Full Port

1шт.

14

47744741

CLAMP

T-Bolt

4шт.

15

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

2шт.

16

34306062

ELBOW

3/4"

2шт.

17

34306063

PIPE FITTING

3/4"

2шт.

18

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

19

25631206

TUBE

2шт.

20

47741711

Cut To Length

2шт.
