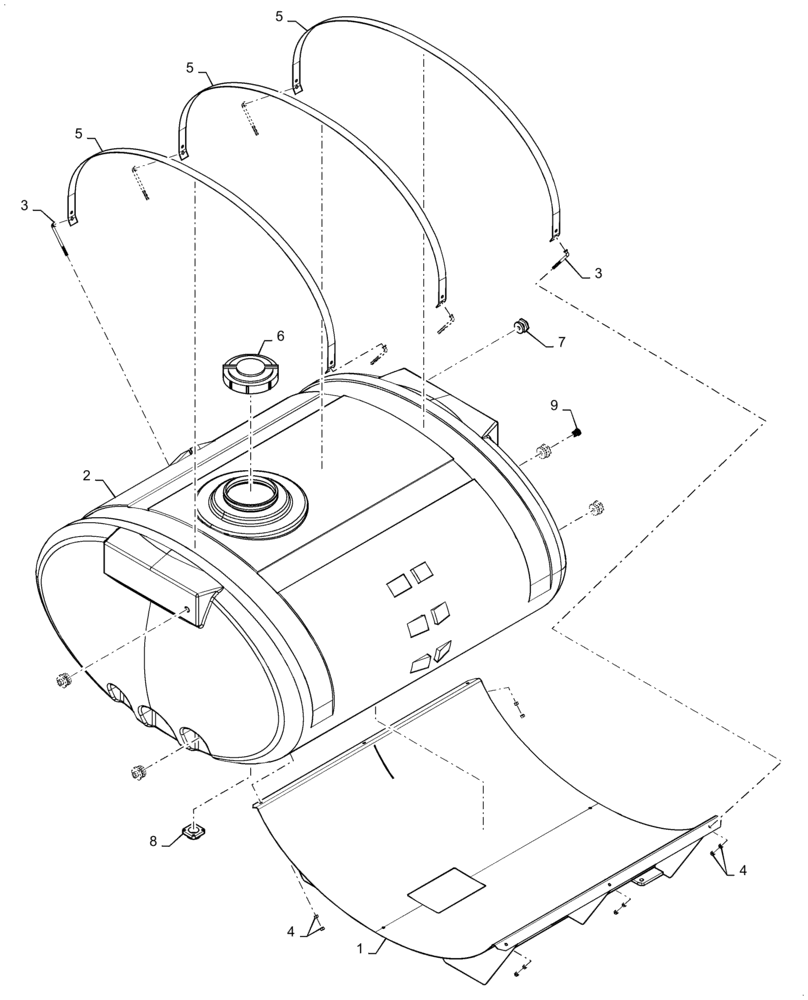

Запчасти Case IH NPX2800 (63.100.AA[19]) - TANK MOUNT 1000 GALLON (63) - CHEMICAL APPLICATORS

1

87595670

MOUNTING PARTS

Tank 1000 Gallon

1шт.

2

47695087

TANK

1000 Gallon

1шт.

3

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

6шт.

4

280431

NUT,1/2"-13, G5

12шт.

5

87485980

STRAP

1000 Gallon Tank

3шт.

6

47850853

LID

Tank

1шт.

7

406148A1

FITTING

3/4" Tank

5шт.

8

BN309800

FLANGE

2.00" Bottom Drain

1шт.

9

BN73553

PLUG

.75"

1шт.
