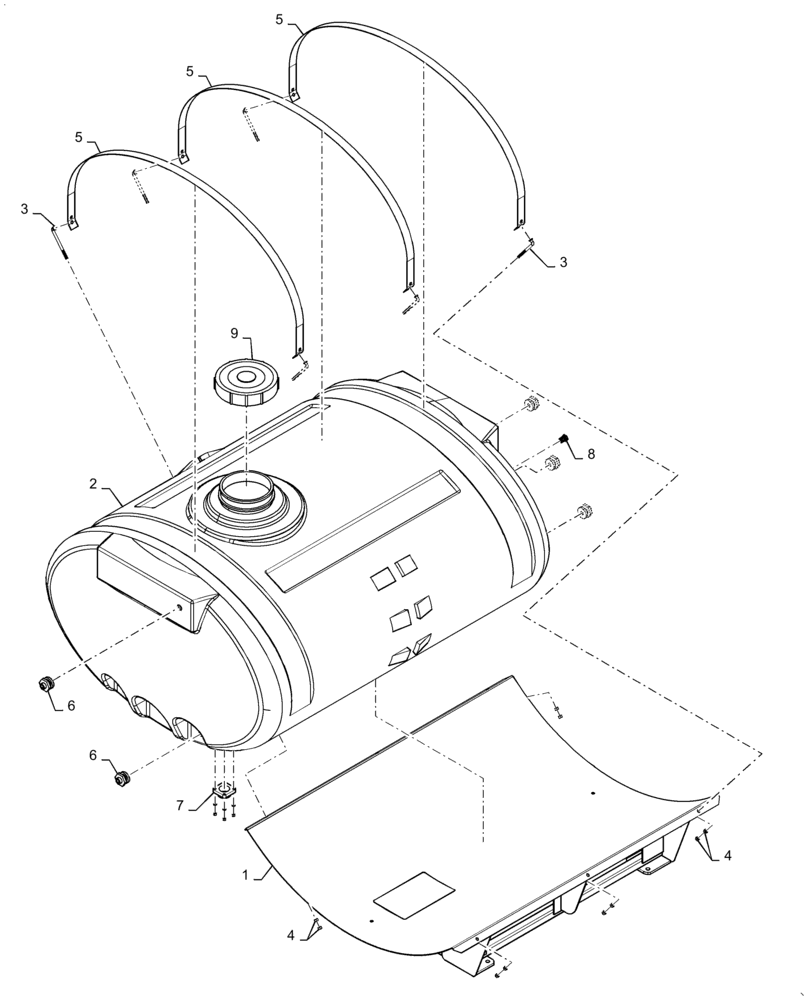

Запчасти Case IH NPX2800 (63.100.AA[18]) - TANK MOUNT 850 GALLON (63) - CHEMICAL APPLICATORS

1

87338188

MOUNTING PARTS

850 Gallon , Start Serial: yfd079266

1шт.

2

47695076

TANK

850 Gallon , Start Serial: yfd079266

1шт.

3

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

, Start Serial: yfd079266

6шт.

4

280431

NUT,1/2"-13, G5

, Start Serial: yfd079266

12шт.

5

05302360

STRAP

850 Gallon , Start Serial: yfd079266

3шт.

6

406148A1

FITTING

3/4" Tank , Start Serial: yfd079266

5шт.

7

BN309800

FLANGE

2.00" Bottom Drain , Start Serial: yfd079266

1шт.

8

BN73553

PLUG

Bottom Drain , Start Serial: yfd079266

1шт.

9

47850853

LID

Tank 850 And 1000 Gal , Start Serial: yfd079266

1шт.
