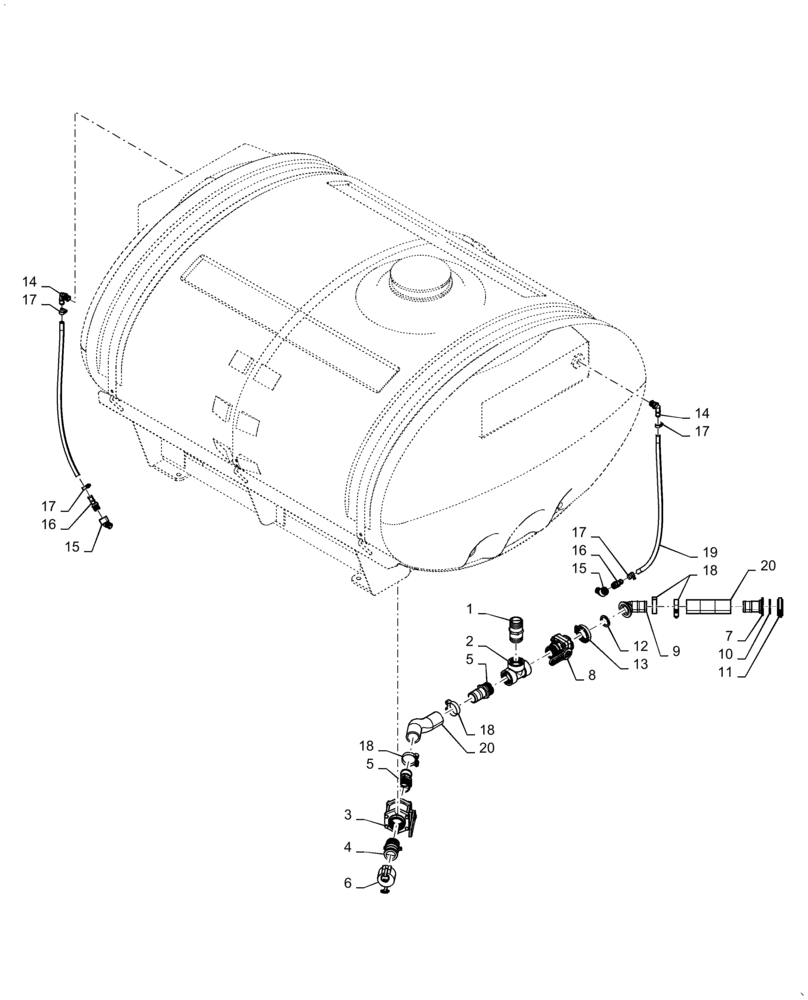

Запчасти Case IH NPX2800 (63.100.AA[17]) - TANK FITTINGS HYDRULIC PUMP 850 GALLON (63) - CHEMICAL APPLICATORS

1

87533683

NIPPLE,2" x 4" Poly Nipple

Poly Short

1шт.

2

34316005

TEE

2"

1шт.

3

34216001

VALVE,2" Full Port Valve

2" Ball Valve

1шт.

4

34416002

PUSH-PULL COUPLING

2" Male Coupler

1шт.

5

34316003

PIPE FITTING

2"

2шт.

6

34416022

DUST CAP,2" Cap

2"

1шт.

7

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

Barb 2"

1шт.

8

401874A1

VALVE,2" Flange x 2" Male NPT

2" Male

1шт.

9

401874A1

VALVE,2" Flange x 2" Male NPT

45 Deg

1шт.

10

BN313772

GASKET,2" Full Port, EPDM

2.2"

1шт.

11

BN313773

CLAMP,2" Full Port

2" Full Port

1шт.

12

BN303204

GASKET,1-1/2" EPDM Gasket

1шт.

13

BN303199

CLAMP,2" Flange

2"

1шт.

14

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

2шт.

15

34306062

ELBOW

3/4" 45 Deg

2шт.

16

34306063

PIPE FITTING

3/4" Hose Barb

2шт.

17

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

18

47744741

CLAMP

T-Bolt

4шт.

19

25631206

TUBE

3/4" Sight Tube

1шт.

20

47741711

Cut To Length

1шт.
