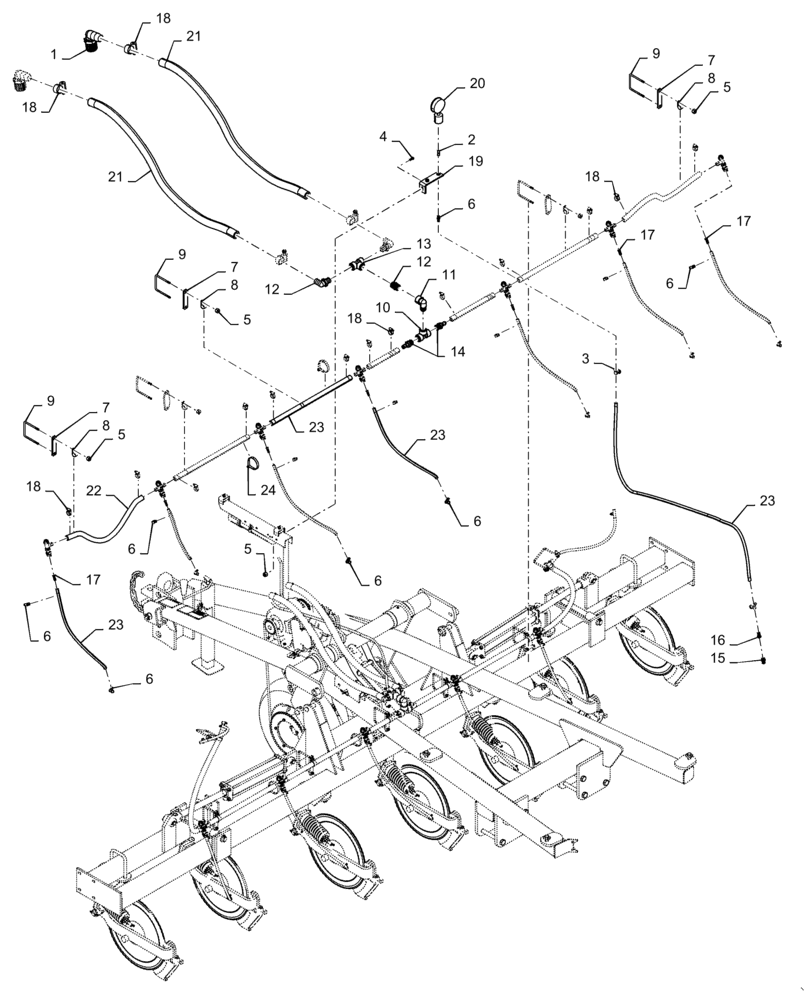

Запчасти Case IH NPX2800 (63.100.AA[06]) - LIQUID PARTS, 2800, 7 COULTER DOUBLE PISTON PUMP (63) - CHEMICAL APPLICATORS

1

84325034

FITTING,1" - 11.5 NPT x 1" Hose Barb

, Start Serial: yfd079266

4шт.

2

15010251

LUBE NIPPLE,1/4" NPT x 1-1/2" L

, Start Serial: yfd079266

1шт.

3

15040255

FITTING,1/4" - 18 NPT x 3/8" Hose Barb, SST

, Start Serial: yfd079266

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: yfd079266

1шт.

5

87039402

NUT,3/8"-16, GB

, Start Serial: yfd079266

15шт.

6

244358

HOSE CLIP,0.44" - 0.78"

, Start Serial: yfd079266

16шт.

7

47729607

PLATE

Liquid Hose Mount, Start Serial: yfd079266

7шт.

8

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: yfd079266

7шт.

9

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

, Start Serial: yfd079266

7шт.

10

34308005

TEE,1" NPT x 1" NPT x 1" NPT, Poly

, Start Serial: yfd079266

1шт.

11

34308002

ELBOW,1" NPT, Poly

, Start Serial: yfd079266

1шт.

12

34308000

NIPPLE,1" NPT x 1" NPT, Poly

, Start Serial: yfd079266

1шт.

13

84325032

TEE,1" Poly Tee with 1/4" Female Thread

, Start Serial: yfd079266

1шт.

14

34308060

PIPE FITTING,1" NPT x 3/4" Hose Barb, Poly

, Start Serial: yfd079266

2шт.

15

84325033

FITTING,1/4" Male Thread x 3/8" 90 Degree Hose Barb

, Start Serial: yfd079266

1шт.

16

47388258

NOZZLE,Tee, 0.75" Injector

, Start Serial: yfd079266

5шт.

17

47388206

NOZZLE,3/4" Injector

, Start Serial: yfd079266

2шт.

18

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

, Start Serial: yfd079266

18шт.

19

04681830

BRACKET

Gauge Mount, SST, Start Serial: yfd079266

1шт.

20

34599015

GAUGE ASSY.,160 PSI

, Start Serial: yfd079266

1шт.

21

25661604

HOSE,1" ID x 48" L, EPDM

, Start Serial: yfd079266

2шт.

22

47747137

HOSE,3/4" ID, EPDM

, Start Serial: yfd079266

1шт.

23

47747135

HOSE,3/8" ID

, Start Serial: yfd079266

1шт.

24

86991007

CABLE TIE,509mm L

, Start Serial: yfd079266

4шт.
