(63.100.AA[03]) - LIQUID PARTS, 2800, 9-11 COULTER SINGLE PUMP

Запчасти Case IH NPX2800 (63.100.AA[03]) - LIQUID PARTS, 2800, 9-11 COULTER SINGLE PUMP (63) - CHEMICAL APPLICATORS

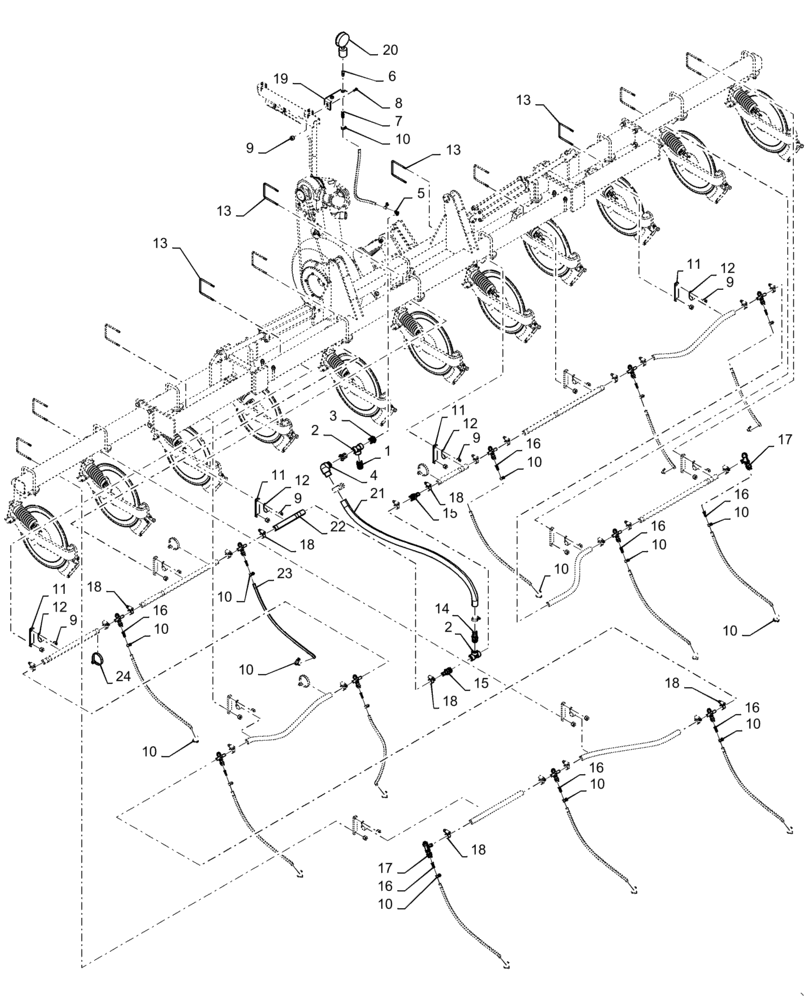

Схема запчастей Case IH NPX2800 - (63.100.AA[03]) - LIQUID PARTS, 2800, 9-11 COULTER SINGLE PUMP (63) - CHEMICAL APPLICATORS
10
10
13
15
18
14
18
18
11
16
10
15
17
16
9
11
16
13
12
10
11
10
18
16
10
12
18
9
13
4
5
2
17
20
2
10
3
8
1
18
10
16
16
10
24
12
9
11
10
23
7
19
13
9
10
21
12
10
6
16
9
10
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

34308000

NIPPLE,1" NPT x 1" NPT, Poly

Short Nipple , Start Serial: yfd079266

1шт.

2

34308005

TEE,1" NPT x 1" NPT x 1" NPT, Poly

1" Poly Pipe , Start Serial: yfd079266

2шт.

3

34308041

BUSHING,1" NPT x 1/2" NPT

1" x 1/2", Start Serial: yfd079266

1шт.

4

84325034

FITTING,1" - 11.5 NPT x 1" Hose Barb

Hose 1" , Start Serial: yfd079266

1шт.

5

84346916

FITTING,1/2" Male Thread x 3/8" 90 Degree Hose Barb

1/2" Male , Start Serial: yfd079266

1шт.

6

15010251

LUBE NIPPLE,1/4" NPT x 1-1/2" L

, Start Serial: yfd079266

1шт.

7

15040255

FITTING,1/4" - 18 NPT x 3/8" Hose Barb, SST

1/4", Start Serial: yfd079266

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: yfd079266

1шт.

9

87039402

NUT,3/8"-16, GB

, Start Serial: yfd079266

23шт.

10

244358

HOSE CLIP,0.44" - 0.78"

, Start Serial: yfd079266

24шт.

11

47729607

PLATE

Liquid Hose Mount , Start Serial: yfd079266

11шт.

12

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: yfd079266

11шт.

13

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

3/8-16", Start Serial: yfd079266

11шт.

14

34308001

PIPE FITTING,1" NPT x 1" Hose Barb, Poly

Hose Barb 1", Start Serial: yfd079266

1шт.

15

34308060

PIPE FITTING,1" NPT x 3/4" Hose Barb, Poly

Hose barb 3/4" , Start Serial: yfd079266

2шт.

16

47388258

NOZZLE,Tee, 0.75" Injector

, Start Serial: yfd079266

9шт.

17

47388206

NOZZLE,3/4" Injector

Angle 0.75" Injector , Start Serial: yfd079266

2шт.

18

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

, Start Serial: yfd079266

24шт.

19

04681830

BRACKET

Gauge Mount , Start Serial: yfd079266

1шт.

20

34599015

GAUGE ASSY.,160 PSI

0-160 PSI , Start Serial: yfd079266

1шт.

21

25661604

HOSE,1" ID x 48" L, EPDM

1" x 4 Foot , Start Serial: yfd079266

1шт.

22

47747138

HOSE, BULK,3/4" ID, EPDM

.75" x 30 Feet , Start Serial: yfd079266

1шт.

23

47747136

HOSE,3/8" ID

.375" 40 Foot , Start Serial: yfd079266

1шт.

24

86991007

CABLE TIE,509mm L

20 X .28", Start Serial: yfd079266

4шт.
