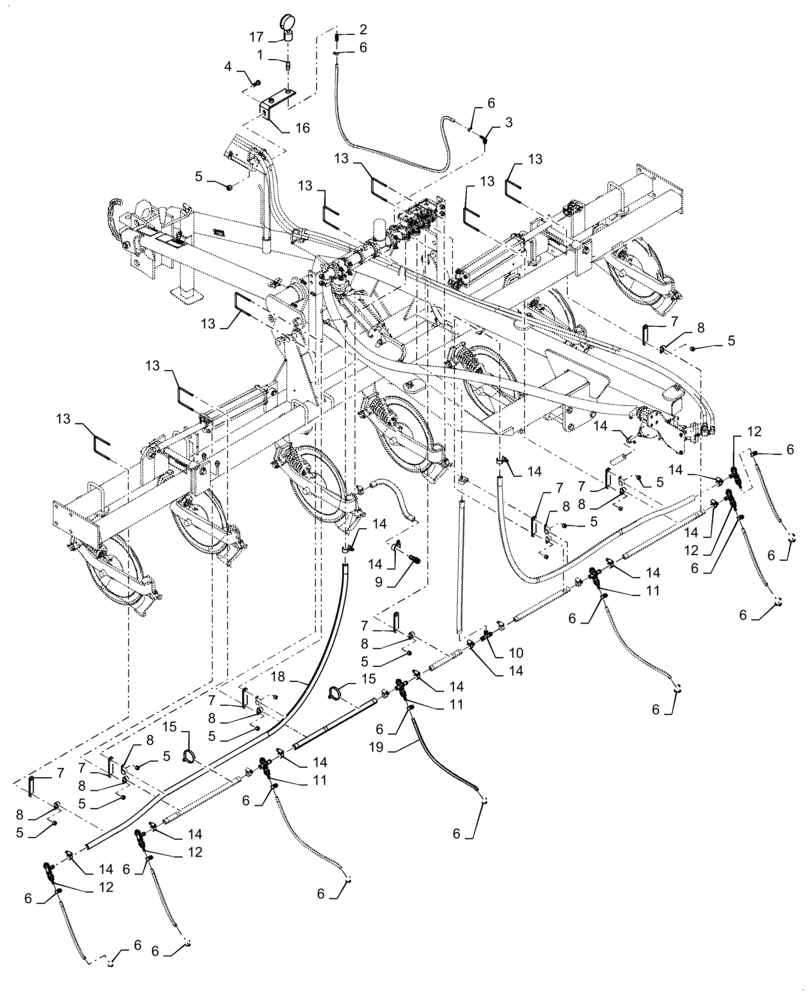

Запчасти Case IH NPX2800 (63.100.AA[01]) - LIQUID PARTS, 2800, 7 COULTER (63) - CHEMICAL APPLICATORS

1

15010251

LUBE NIPPLE,1/4" NPT x 1-1/2" L

, Start Serial: yfd079266

1шт.

2

15040255

FITTING,1/4" - 18 NPT x 3/8" Hose Barb, SST

Pipe 1/4 x 3/8", Start Serial: yfd079266

1шт.

3

84325033

FITTING,1/4" Male Thread x 3/8" 90 Degree Hose Barb

Hose 1/4 X 3/8", Start Serial: yfd079266

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: yfd079266

1шт.

5

87039402

NUT,3/8"-16, GB

, Start Serial: yfd079266

15шт.

6

244358

HOSE CLIP,0.44" - 0.78"

, Start Serial: yfd079266

16шт.

7

47729607

PLATE

Liquid Hose , Start Serial: yfd079266

7шт.

8

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: yfd079266

11шт.

9

34306063

PIPE FITTING

3/4 x 34 Hose Barb , Start Serial: yfd079266

1шт.

10

87669667

FITTING,3/4" Hose Barb Tee

3/4" Tee , Start Serial: yfd079266

1шт.

11

47388258

NOZZLE,Tee, 0.75" Injector

, Start Serial: yfd079266

3шт.

12

47388206

NOZZLE,3/4" Injector

Angle 0.75" Injector , Start Serial: yfd079266

4шт.

13

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

3/8-16", Start Serial: yfd079266

7шт.

14

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

", Start Serial: yfd079266

19шт.

15

86991007

CABLE TIE,509mm L

20X .28" , Start Serial: yfd079266

4шт.

16

04681830

BRACKET

Gauge Mount , Start Serial: yfd079266

1шт.

17

34599015

GAUGE ASSY.,160 PSI

0 -160 PSI, Start Serial: yfd079266

1шт.

18

47747140

HOSE, BULK,3/4" ID, EPDM

.75" X 90 Feet , Start Serial: yfd079266

1шт.

19

47747135

HOSE,3/8" ID

.375"X 60 Feet, Start Serial: yfd079266

1шт.
