Запчасти Case IH NPX2800 (55.404.01) - WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS

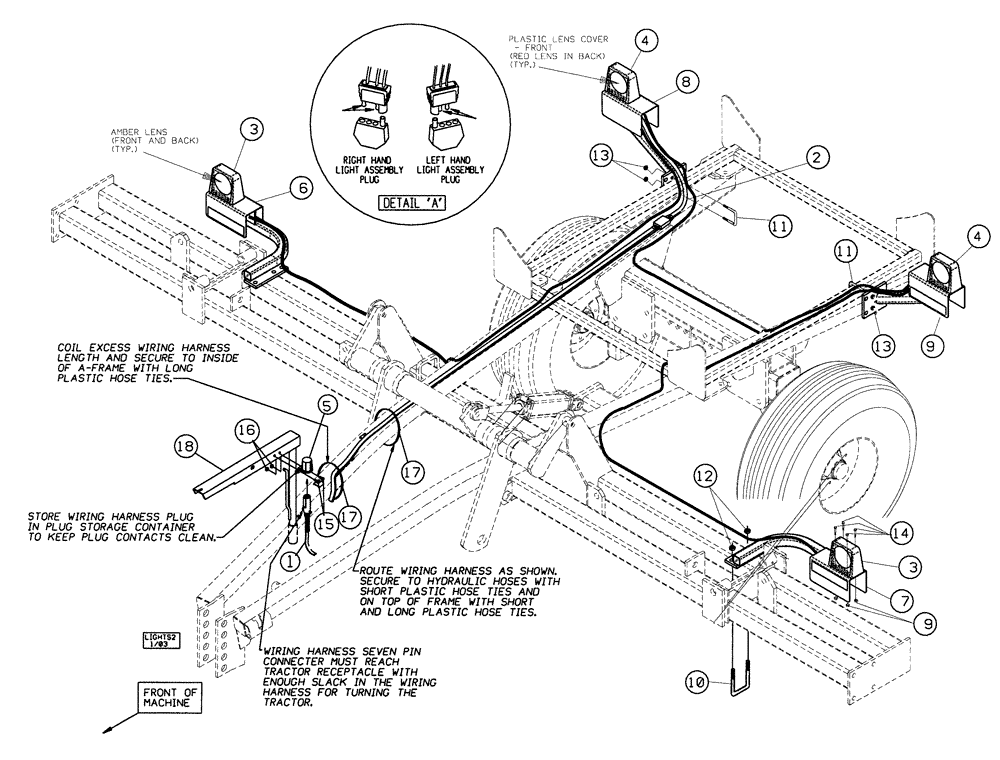

Схема запчастей Case IH NPX2800 - (55.404.01) - WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS
18
4
3
8
2
4
5
17
11
13
11
9
3
1
10
7
9
6
17
16
12
14
13
15

Артикул

Название

Примечание

Количество

1

87446670

WIRE HARNESS

Front

1шт.

2

27602234

HARNESS

Wiring, Rear

1шт.

3

27602201

LIGHT ASSY.

Single, Amber

2шт.

4

27602202

LIGHT ASSY.

Single, Red

2шт.

5

27601214

HOLDER

Storage, Plug

1шт.

6

04681730

BRACKET

Light, Front, RH

1шт.

7

04681740

BRACKET

Light, Front, LH

1шт.

8

411674A2

BRACKET

Light, Rear, RH

1шт.

Used On 2007 And Prior Units

1шт.

8

87690617

BRACKET

Light, Rear, RH

1шт.

Used On 2008 And After Units

1шт.

9

411673A2

BRACKET

Light, Rear, LH

1шт.

Used On 2007 And Prior Units

1шт.

9

87690618

BRACKET

Light, Rear, LH

1шт.

Used On 2008 And After Units

1шт.

10

16308110

U-BOLT

1/2" x 2" x 3"

2шт.

11

87427161

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

2шт.

12

86992215

LOCK NUT,1/2"-13, GC

4шт.

13

85700693

NUT,5/8" - 11, Gr C

4шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

16

86992211

NUT

1/4"

18шт.

17

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

18

05302150

STAND

Hose

1шт.

19

27601215

LENS

Replacement, Amber

1шт.

20

27601216

LENS

Replacement, Red

1шт.

21

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP Plastic, Not Shown

1шт.

Выбрано товаров: 27
