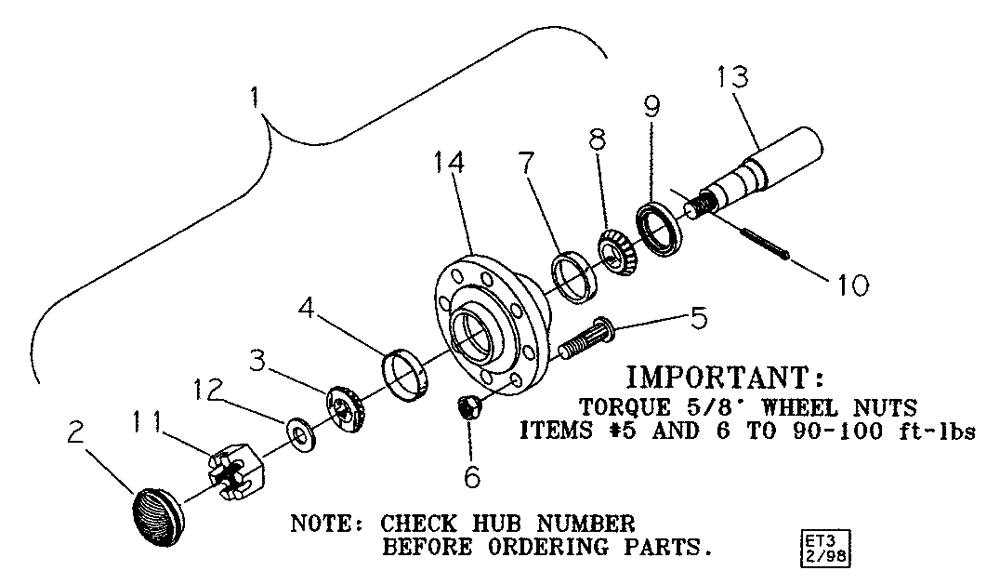

Запчасти Case IH NPX2800 (44.100.03) - 80-8 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

87330629

STUB AXLE/STEERING S

80-8

1шт.

2

28460800

DUST CAP

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62 Bore, Timken LM501349

1шт.

4

663558R1

BEARING CUP

2.89 OD, Timken LM501310

1шт.

5

87343929

BOLT

5/8-18 X 2.5

8шт.

5

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8 X 2-1/4

8шт.

6

554480R1

WHEEL NUT

5/8 NF

8шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.54, OD, Timken JLM506810

1шт.

8

3216619R91

TAPERED BEARING,55mm ID x 26mm W

2.165 Bore, Timken JLM506848

1шт.

10

21932750

SEAL

2.75 ID x 3.75 OD, CR531108

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

11

425-1316

NUT,1"-14, G5

1шт.

12

17916100

WASHER

1

1шт.

13

87330631

STUB AXLE/STEERING S

1шт.

14

87330630

HUB ASSY.

80-8 With Cups, Inc. 4-5, 7, And 19

1шт.
